TPS92691PWP

TPS92691PWP Overview

Product belongs to the TPS92691 series. This product is categorized as LED Lighting Drivers Type: DC DC Controller Tube Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style The 4.5 mm is at most 7.6 mm. HTSSOP-16 This product's 80kHz ~ 700kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile Lighting applications for maximum usability Supplier device package: 16-HTSSOP Number-of-Outputs: 1 Current-Output-Channel is - This product has No. Topology: Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) feedback The maximum voltage supply is 65V. The minimum 4.5V required for voltage supply. Output voltage: 65V Dimming control is done through Analog, PWM communication. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The operating frequency is Programmable. Input Voltage Range: 4.5 V to 65 V Output current: 5 A Maximum supply current: 46 mA

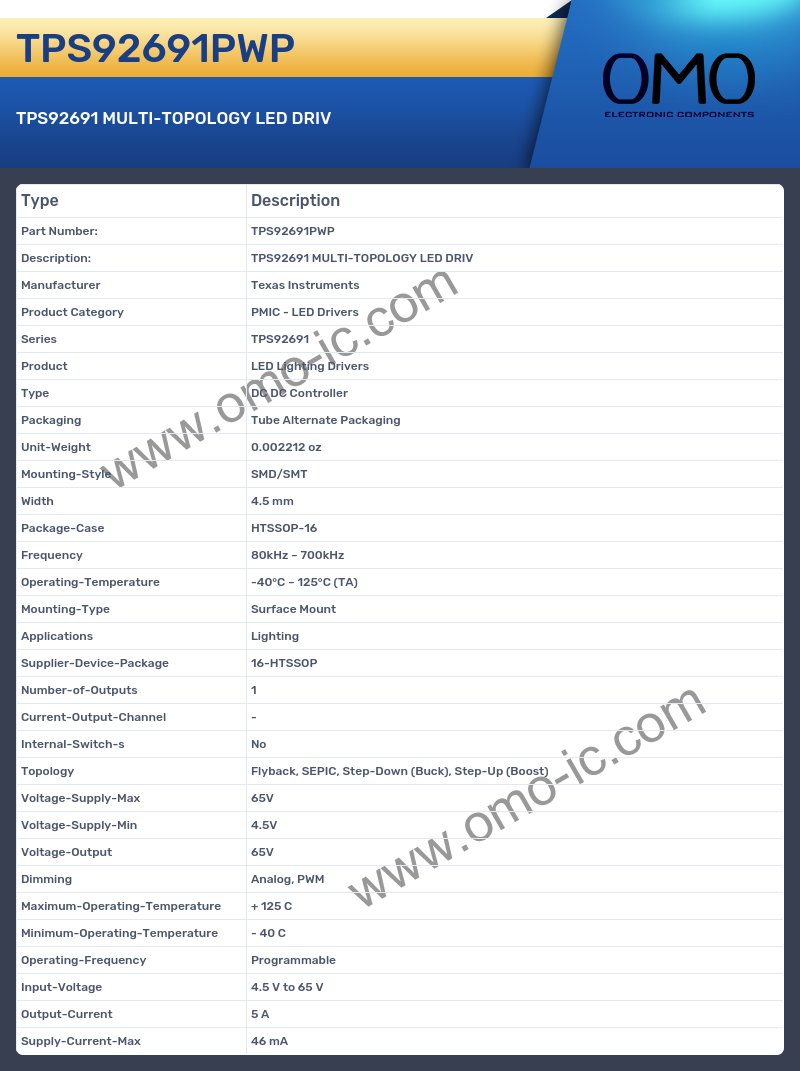

TPS92691PWP Image

TPS92691PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - LED Drivers
• Series TPS92691
• Product LED Lighting Drivers
• Type DC DC Controller
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Width 4.5 mm
• Package-Case HTSSOP-16
• Frequency 80kHz ~ 700kHz
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications Lighting
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 1
• Current-Output-Channel -
• Internal-Switch-s No
• Topology Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
• Voltage-Supply-Max 65V
• Voltage-Supply-Min 4.5V
• Voltage-Output 65V
• Dimming Analog, PWM
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Frequency Programmable
• Input-Voltage 4.5 V to 65 V
• Output-Current 5 A
• Supply-Current-Max 46 mA
