TS3USB3031RMGR

TS3USB3031RMGR Overview

Product belongs to the TS3USB3031 series. This product is categorized as USB 2.0 MHL MyDP Switches Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style WQFN-12 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is USB Switch. Supplier device package: 12-WQFN (1.8x1.8) - is 8. Voltage supply source: Analog and digital Single Supply Configuration 1 x DP3T Circuit type: 2 x 3:1 7 Ohm maximum on-state resistance Voltage supply range: 2.5 V ~ 4.3 V This product has a 28μA of 200μA. The - 6.5 GHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.5 V supply voltage for reliable performance. 40 uA is 92 nA. The TS3USB3031EVM. Maximum supply voltage of 4.3 V Minimum supply voltage is 2.5 V Max on-resistance of 6 Ohms 7 Ohms Maximum off time: 100 us 2 Switch switch functionality Maximum on-time: 100 us The 60 mA

TS3USB3031RMGR Image

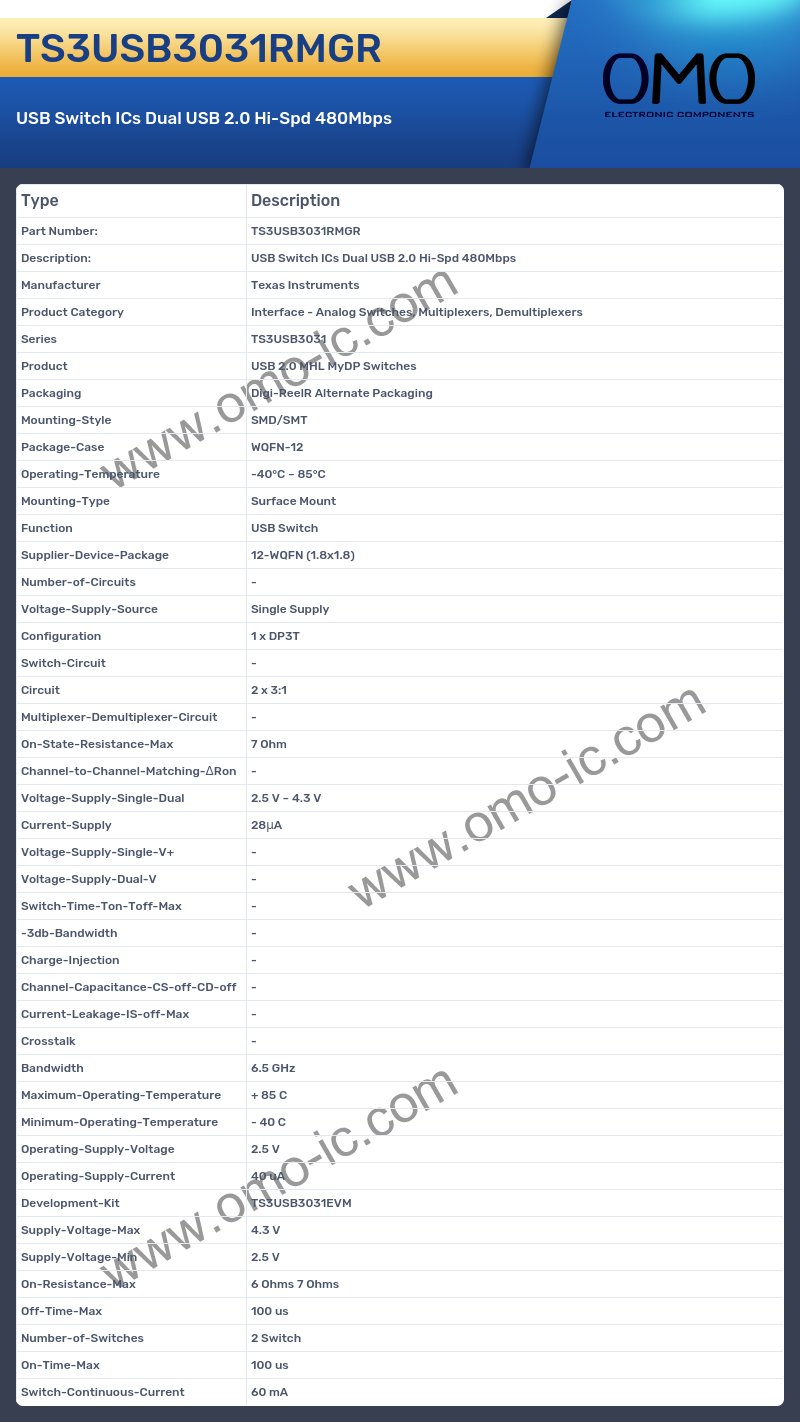

TS3USB3031RMGR Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series TS3USB3031
• Product USB 2.0 MHL MyDP Switches
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case WQFN-12
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function USB Switch
• Supplier-Device-Package 12-WQFN (1.8x1.8)
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 1 x DP3T
• Switch-Circuit -
• Circuit 2 x 3:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 7 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 2.5 V ~ 4.3 V
• Current-Supply 28μA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 6.5 GHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.5 V
• Operating-Supply-Current 40 uA
• Development-Kit TS3USB3031EVM
• Supply-Voltage-Max 4.3 V
• Supply-Voltage-Min 2.5 V
• On-Resistance-Max 6 Ohms 7 Ohms
• Off-Time-Max 100 us
• Number-of-Switches 2 Switch
• On-Time-Max 100 us
• Switch-Continuous-Current 60 mA
