TS861IDT

TS861IDT Overview

Product belongs to the TS861 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style SO-8 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Push-Pull Number of channels: 1 Channel Supplier device package: 8-SO Voltage supply range: 2.7 V ~ 10 V 1 element 16μA maximum quiescent current. Maximum propagation delay: 2μs Hysteresis value of - 500 ns response time Power-off control: No Shutdown Power-off control: 710 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 12 uA is 92 nA. Maximum supply voltage of 10 V Minimum supply voltage is 2.7 V Input bias current of 600 pA The 18 mV. The 300 nA. The Negative Rail - 0.3 V to Positive Rail + 0.3 V. 5 mA

TS861IDT Image

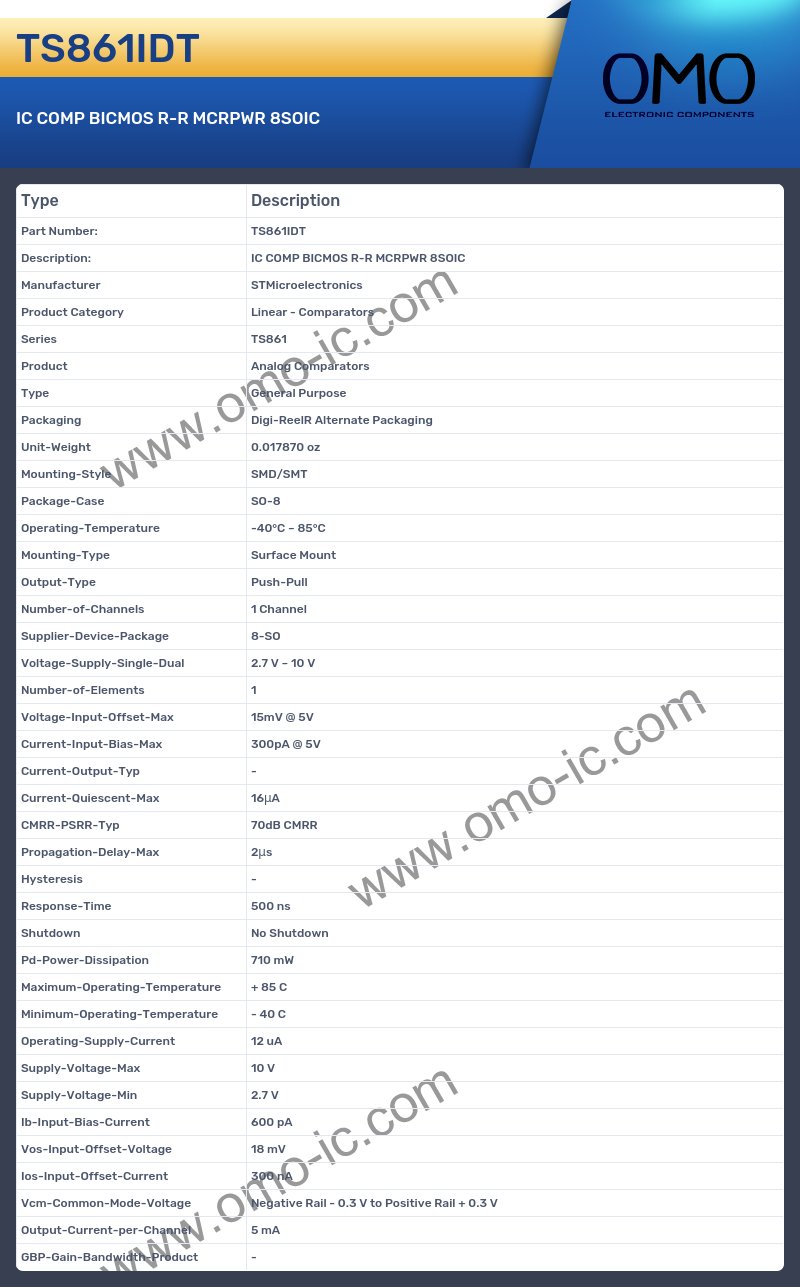

TS861IDT Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series TS861
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Package-Case SO-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SO
• Voltage-Supply-Single-Dual 2.7 V ~ 10 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 15mV @ 5V
• Current-Input-Bias-Max 300pA @ 5V
• Current-Output-Typ -
• Current-Quiescent-Max 16μA
• CMRR-PSRR-Typ 70dB CMRR
• Propagation-Delay-Max 2μs
• Hysteresis -
• Response-Time 500 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 710 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 12 uA
• Supply-Voltage-Max 10 V
• Supply-Voltage-Min 2.7 V
• Ib-Input-Bias-Current 600 pA
• Vos-Input-Offset-Voltage 18 mV
• Ios-Input-Offset-Current 300 nA
• Vcm-Common-Mode-Voltage Negative Rail - 0.3 V to Positive Rail + 0.3 V
• Output-Current-per-Channel 5 mA
• GBP-Gain-Bandwidth-Product -
