TSM103WAID Overview

Product belongs to the TSM103W series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style Number of channels: 2 Channel The amplifier is of General Purpose Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 1.2 mA is 92 nA. Maximum supply voltage of 32 V Minimum supply voltage is 3 V SO-8 Input bias current of 150 nA The 3 mV. The CMRR-Common-Mode-Rejection-Ratio is 70 dB. The 50 nV/sqrt Hz of this product is 110 nV/sqrt Hz. Maximum dual supply voltage: +/- 16 V Minimum dual supply voltage of +/- 1.5 V

TSM103WAID Image

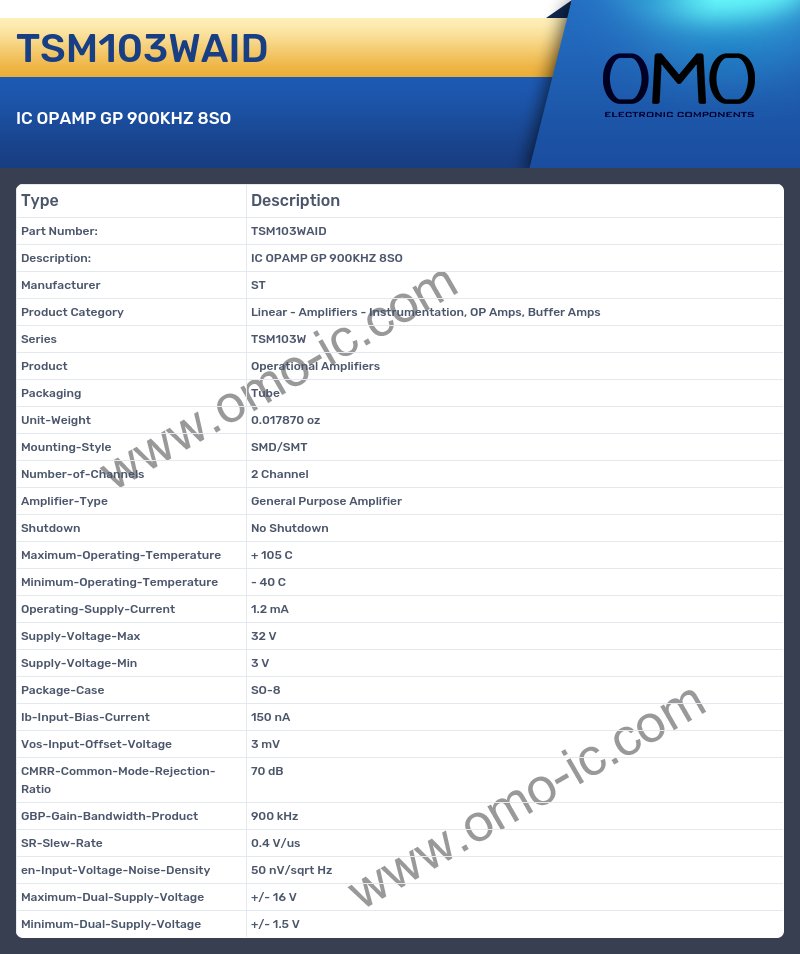

TSM103WAID Specifications

• Manufacturer ST
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TSM103W
• Product Operational Amplifiers
• Packaging Tube
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Number-of-Channels 2 Channel
• Amplifier-Type General Purpose Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.2 mA
• Supply-Voltage-Max 32 V
• Supply-Voltage-Min 3 V
• Package-Case SO-8
• Ib-Input-Bias-Current 150 nA
• Vos-Input-Offset-Voltage 3 mV
• CMRR-Common-Mode-Rejection-Ratio 70 dB
• GBP-Gain-Bandwidth-Product 900 kHz
• SR-Slew-Rate 0.4 V/us
• en-Input-Voltage-Noise-Density 50 nV/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 16 V
• Minimum-Dual-Supply-Voltage +/- 1.5 V
