TSW2200EVM

TSW2200EVM Overview

Product belongs to the - series. This product is categorized as Evaluation Modules Type: Power Supply Controllers The DC/DC, Step Down with LDO is the Main-Purpose. 10 V ~ 20 V voltage input This product features 'Frequency-Switching' at - for optimal performance. Output voltage: 1.8V, 3.3V, 5V, -5V, 0.8 V ~ 6 V Buck regulator topology - Included item: Board. IC package type: TPS40055, TPS76xx, UCD90120A Board type: Fully Populated. The product has 6, Non-Isolated outputs. Output voltage: 1.8 V 3.3 V 5 V 1.4 V to 6.37 V This product is an Low cost portable power supply. This tool is designed for the TPS40055 TPS76xx UCD90120A. Input Voltage Range: 10 V to 20 V Output current: 1 A

TSW2200EVM Image

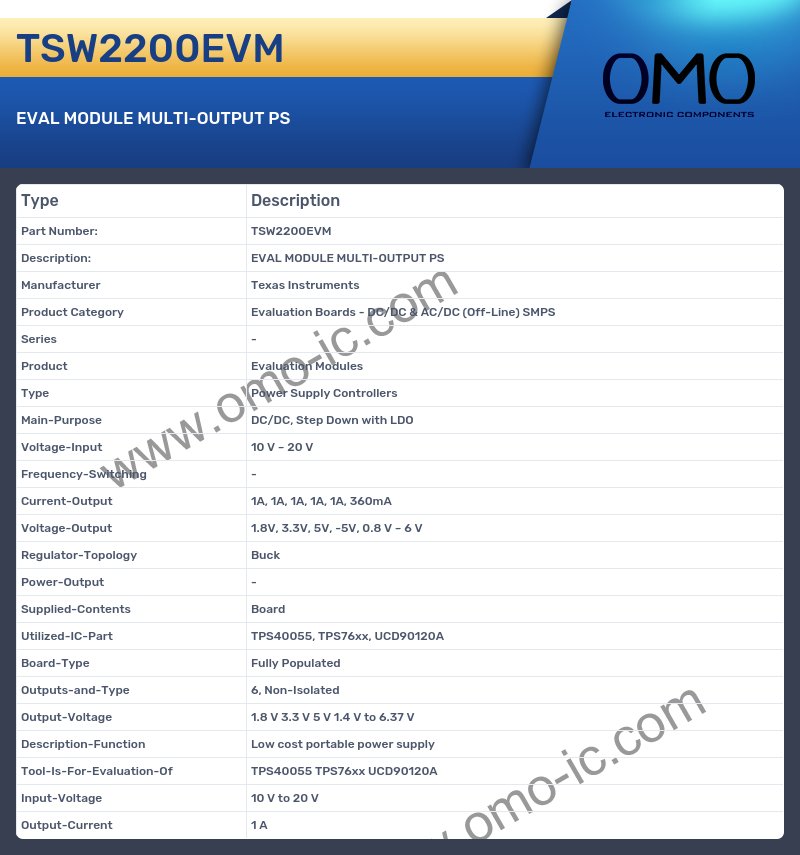

TSW2200EVM Specifications

• Manufacturer Texas Instruments
• Product Category Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
• Series -
• Product Evaluation Modules
• Type Power Supply Controllers
• Main-Purpose DC/DC, Step Down with LDO
• Voltage-Input 10 V ~ 20 V
• Frequency-Switching -
• Current-Output 1A, 1A, 1A, 1A, 1A, 360mA
• Voltage-Output 1.8V, 3.3V, 5V, -5V, 0.8 V ~ 6 V
• Regulator-Topology Buck
• Power-Output -
• Supplied-Contents Board
• Utilized-IC-Part TPS40055, TPS76xx, UCD90120A
• Board-Type Fully Populated
• Outputs-and-Type 6, Non-Isolated
• Output-Voltage 1.8 V 3.3 V 5 V 1.4 V to 6.37 V
• Description-Function Low cost portable power supply
• Tool-Is-For-Evaluation-Of TPS40055 TPS76xx UCD90120A
• Input-Voltage 10 V to 20 V
• Output-Current 1 A
