TSX393IQ2T Overview

Product belongs to the - series. This product is categorized as Analog Comparators Type: CMOS Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 2 Channel Supplier device package: 8-DFN (2x2) Voltage supply range: 2.7 V ~ 16 V, ±1.35 V ~ 8 V 2 element 8μA maximum quiescent current. Maximum propagation delay: 2.5μs Hysteresis value of - 2.5 us response time Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 2.7 V Window comparator type Input bias current of 1 pA The 5 mV. The 10 pA. 20 mA The CMRR-Common-Mode-Rejection-Ratio is 85 dB.

TSX393IQ2T Image

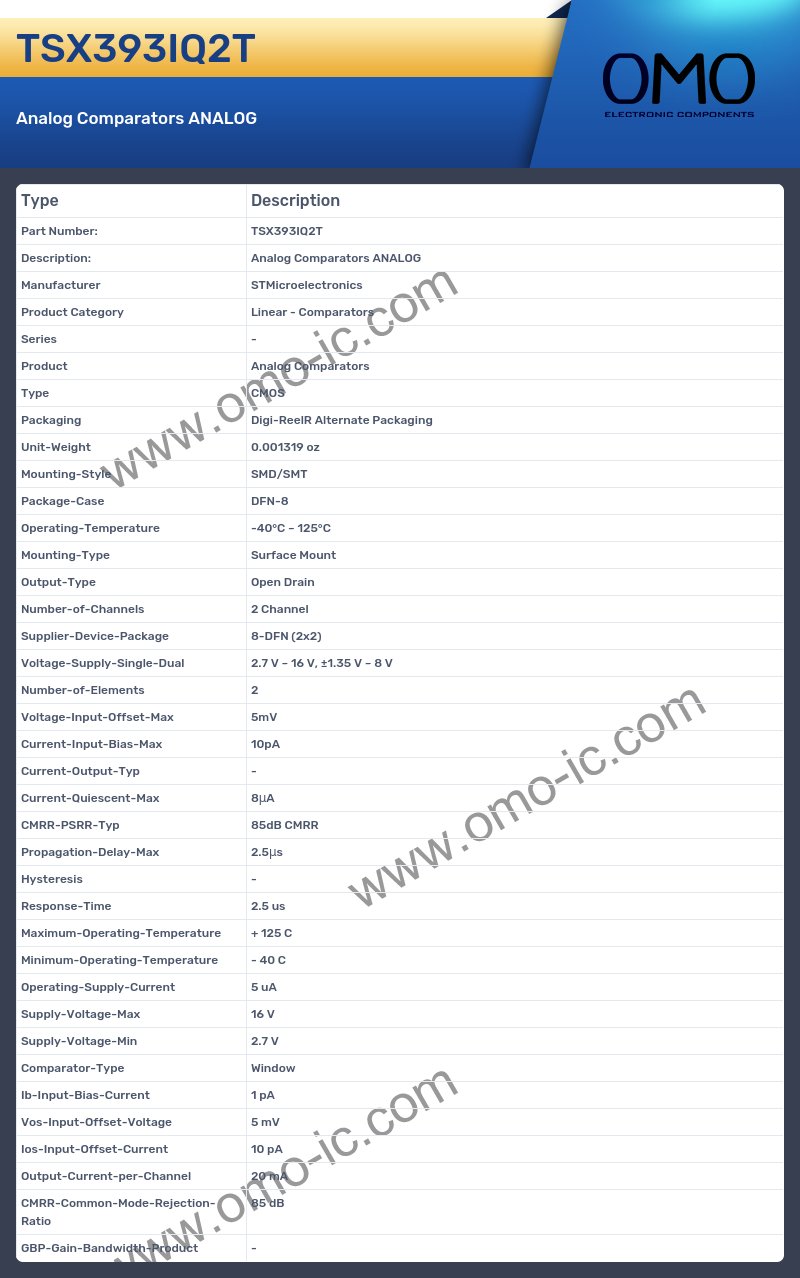

TSX393IQ2T Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series -
• Product Analog Comparators
• Type CMOS
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-DFN (2x2)
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V, ±1.35 V ~ 8 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV
• Current-Input-Bias-Max 10pA
• Current-Output-Typ -
• Current-Quiescent-Max 8μA
• CMRR-PSRR-Typ 85dB CMRR
• Propagation-Delay-Max 2.5μs
• Hysteresis -
• Response-Time 2.5 us
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2.7 V
• Comparator-Type Window
• Ib-Input-Bias-Current 1 pA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 10 pA
• Output-Current-per-Channel 20 mA
• CMRR-Common-Mode-Rejection-Ratio 85 dB
• GBP-Gain-Bandwidth-Product -
