TYN816RG

TYN816RG Overview

Product belongs to the TYN816 series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TO-220AB 40mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.5V 25mA of Current-Gate-Trigger-Igt-Max Maximum 1.6V On-State Voltage Its 10A Current-On-State-It-AV-Max 16A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 160A, 167A for 50-60Hz Itsm. SCR-Type: Standard Recovery; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 40 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.5 V on this product. Gate-Trigger-Current-Igt: 25 mA; 167 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. Vf-Forward-Voltage: 500 V

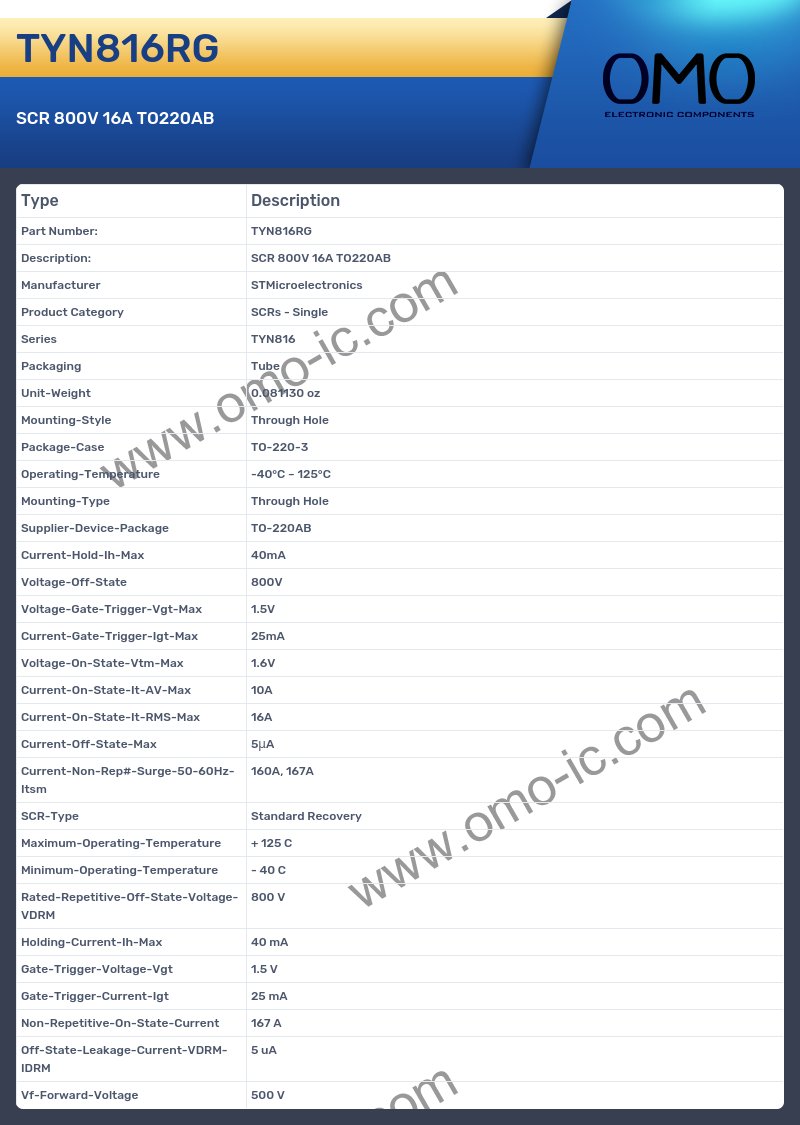

TYN816RG Image

TYN816RG Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series TYN816
• Packaging Tube
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Current-Hold-Ih-Max 40mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.5V
• Current-Gate-Trigger-Igt-Max 25mA
• Voltage-On-State-Vtm-Max 1.6V
• Current-On-State-It-AV-Max 10A
• Current-On-State-It-RMS-Max 16A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 160A, 167A
• SCR-Type Standard Recovery
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 800 V
• Holding-Current-Ih-Max 40 mA
• Gate-Trigger-Voltage-Vgt 1.5 V
• Gate-Trigger-Current-Igt 25 mA
• Non-Repetitive-On-State-Current 167 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• Vf-Forward-Voltage 500 V
