UC2525ADWTR

UC2525ADWTR Overview

Product belongs to the UC2525A series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-16 Wide Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 16-SOIC Number-of-Outputs: 2 Topology: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8 V ~ 35 V This product features 'Frequency-Switching' at 100Hz ~ 400kHz for optimal performance. The Control-Features include Enable, Frequency Control, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 50 % The value of Yes is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product operates at a 8 V to 35 V supply voltage for reliable performance. Output current: 400 mA Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 100 ns of 16 ns.

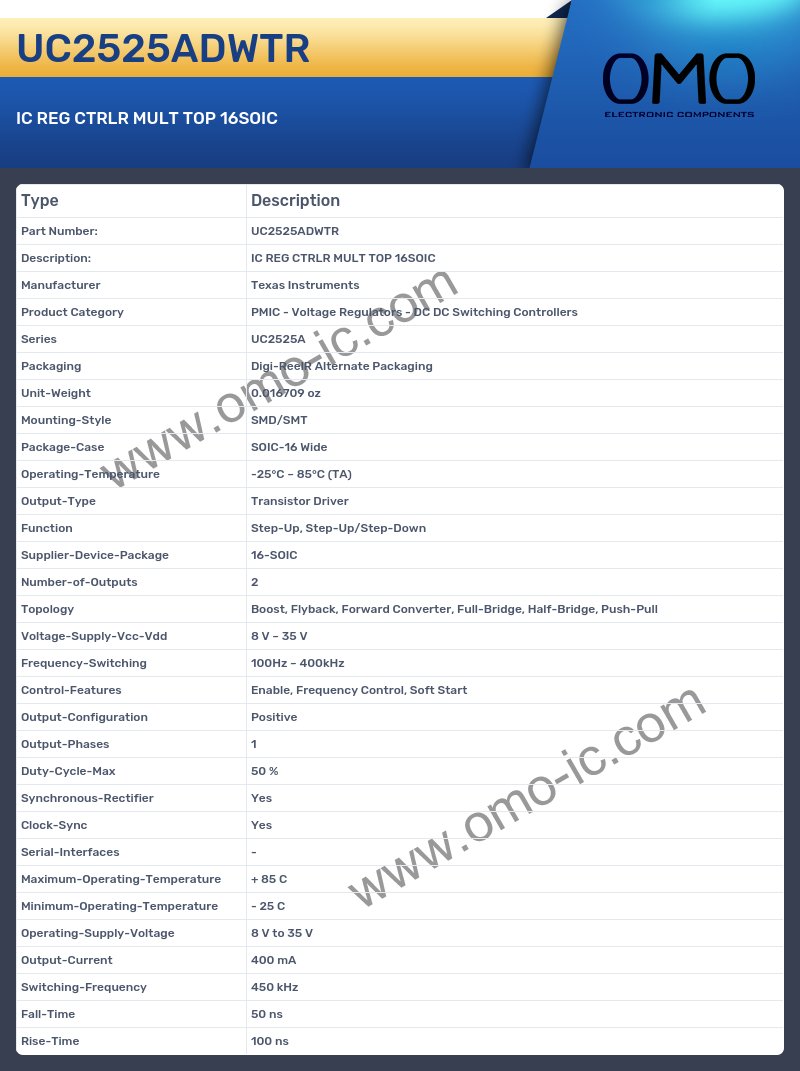

UC2525ADWTR Image

UC2525ADWTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC2525A
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16 Wide
• Operating-Temperature -25°C ~ 85°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 16-SOIC
• Number-of-Outputs 2
• Topology Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8 V ~ 35 V
• Frequency-Switching 100Hz ~ 400kHz
• Control-Features Enable, Frequency Control, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 50 %
• Synchronous-Rectifier Yes
• Clock-Sync Yes
• Serial-Interfaces -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Voltage 8 V to 35 V
• Output-Current 400 mA
• Switching-Frequency 450 kHz
• Fall-Time 50 ns
• Rise-Time 100 ns
