UC3705T

UC3705T Overview

Product belongs to the UC3705 series. Type: High Speed Tube is the packaging method for this product Weight of 0.068079 oz Through Hole Mounting-Style Configuration Single Number-of-Outputs: 1 Power-off control: 3000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 12 mA is 92 nA. Output current: 1.5 A This product has a 40 ns of 16 ns. This product has a 40 ns of 16 ns. Maximum supply voltage of 40 V Minimum supply voltage is 5 V TO-220-5 Number-of-Drivers: 1 Driver

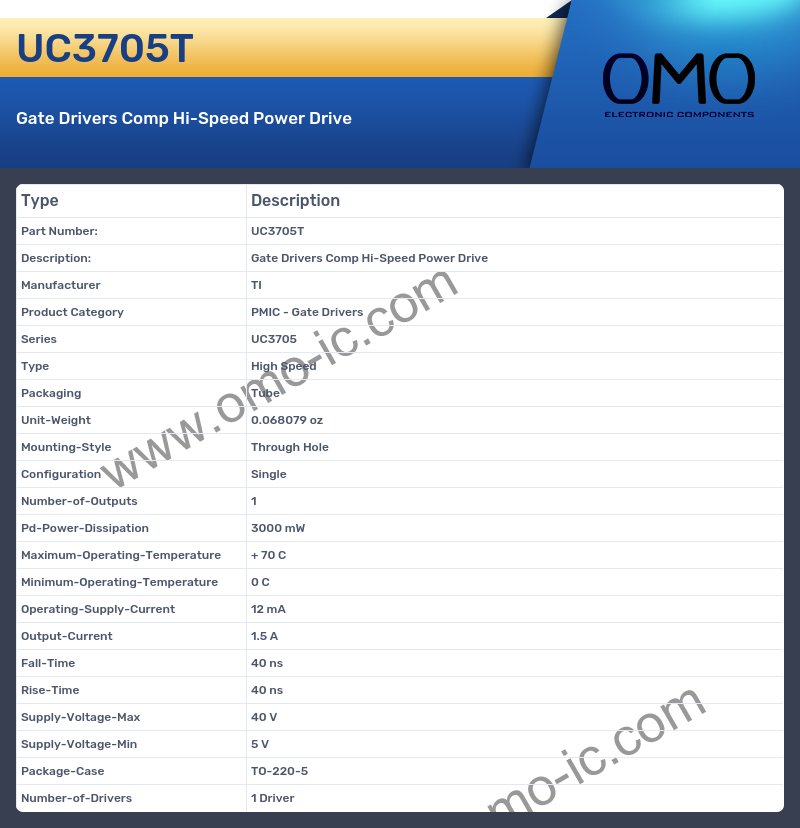

UC3705T Image

UC3705T Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UC3705
• Type High Speed
• Packaging Tube
• Unit-Weight 0.068079 oz
• Mounting-Style Through Hole
• Configuration Single
• Number-of-Outputs 1
• Pd-Power-Dissipation 3000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 12 mA
• Output-Current 1.5 A
• Fall-Time 40 ns
• Rise-Time 40 ns
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 5 V
• Package-Case TO-220-5
• Number-of-Drivers 1 Driver
