UC3825N Overview

Product belongs to the UC3825 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.037172 oz Through Hole Mounting-Style PDIP-16 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 16-PDIP Number-of-Outputs: 2 Topology: Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 8.4 V ~ 30 V This product features 'Frequency-Switching' at 340kHz ~ 460kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Soft Start function. The Positive. Output-Phases: 1 Maximum duty cycle of 85 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 30 V supply voltage for reliable performance. Output voltage: 5 V to 5.2 V Output current: 1500 mA Switching frequency is 1000 kHz This product has a 30 ns of 16 ns. This product has a 30 ns of 16 ns.

UC3825N Image

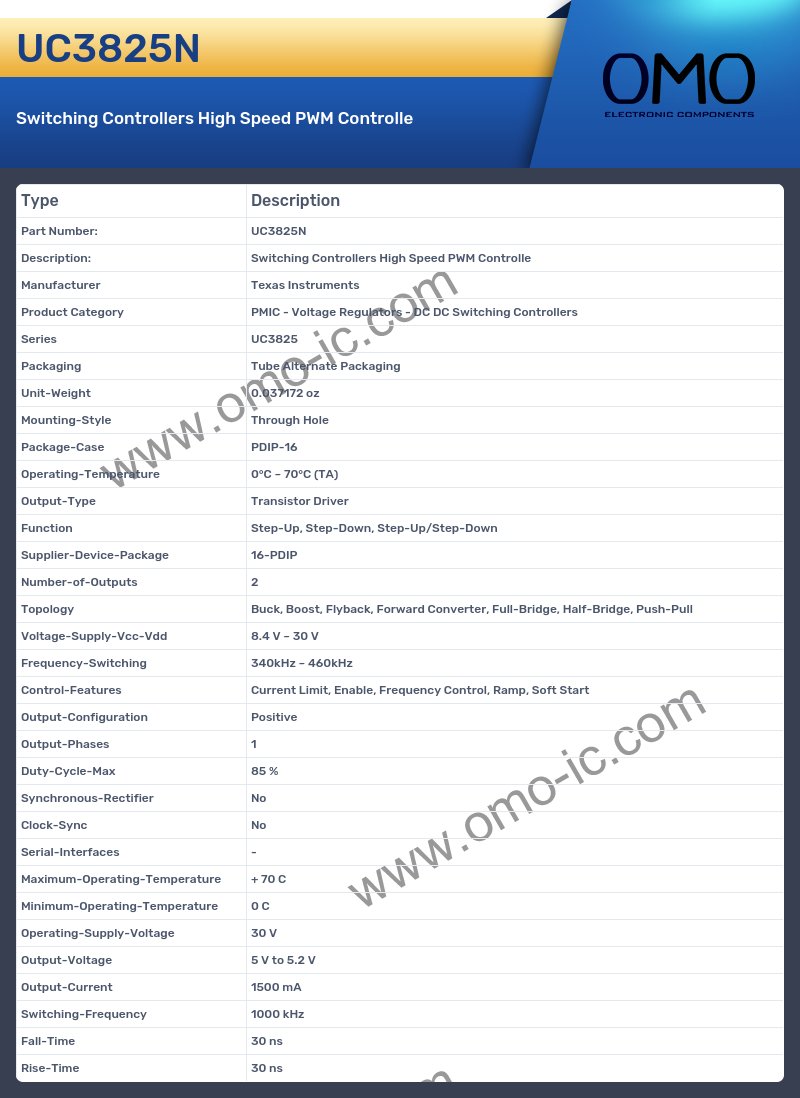

UC3825N Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UC3825
• Packaging Tube Alternate Packaging
• Unit-Weight 0.037172 oz
• Mounting-Style Through Hole
• Package-Case PDIP-16
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 16-PDIP
• Number-of-Outputs 2
• Topology Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 8.4 V ~ 30 V
• Frequency-Switching 340kHz ~ 460kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Soft Start
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 85 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 30 V
• Output-Voltage 5 V to 5.2 V
• Output-Current 1500 mA
• Switching-Frequency 1000 kHz
• Fall-Time 30 ns
• Rise-Time 30 ns
