UC3841NG4

UC3841NG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 18-DIP (0.300", 7.62mm) Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 18-PDIP Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 8 V ~ 32 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 0.95 The value of No is included as a product attribute. No enabled Serial Interfaces: -

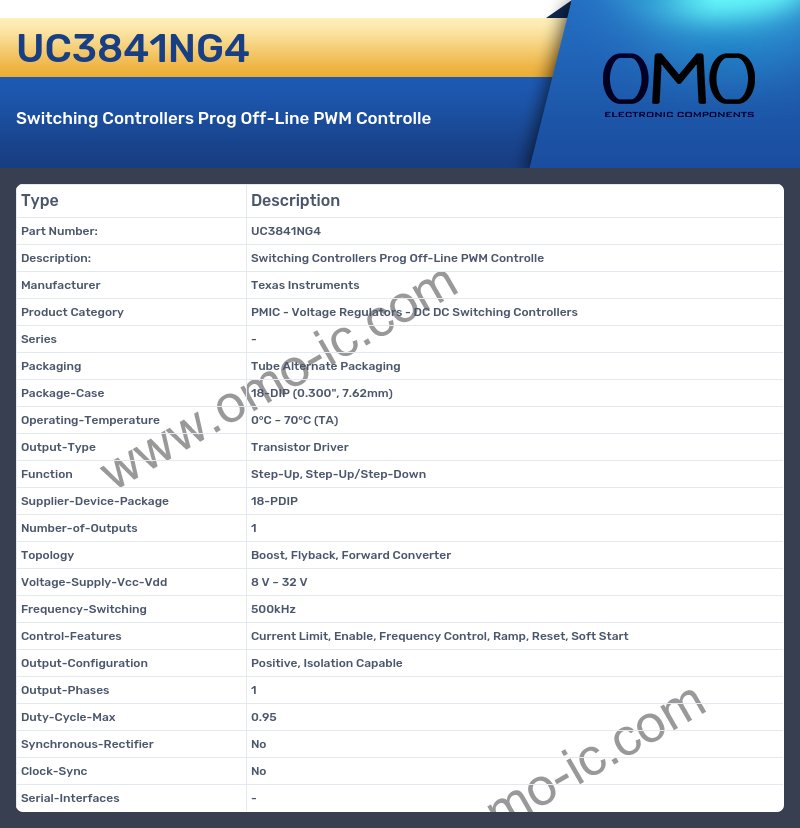

UC3841NG4 Image

UC3841NG4 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 18-DIP (0.300", 7.62mm)
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 18-PDIP
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 8 V ~ 32 V
• Frequency-Switching 500kHz
• Control-Features Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 0.95
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
