| Mfr. #: | UC3844AN |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Switching Controllers Current Mode |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | UC3844AN Datasheet |
Product belongs to the UC3844A series. Tube is the packaging method for this product Weight of 0.018646 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Supplier device package: 8-Mini DIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Forward feedback Supply Voltage: 10 V ~ 30 V This product features 'Frequency-Switching' at Up to 500kHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 450 kHz This product has a 50 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

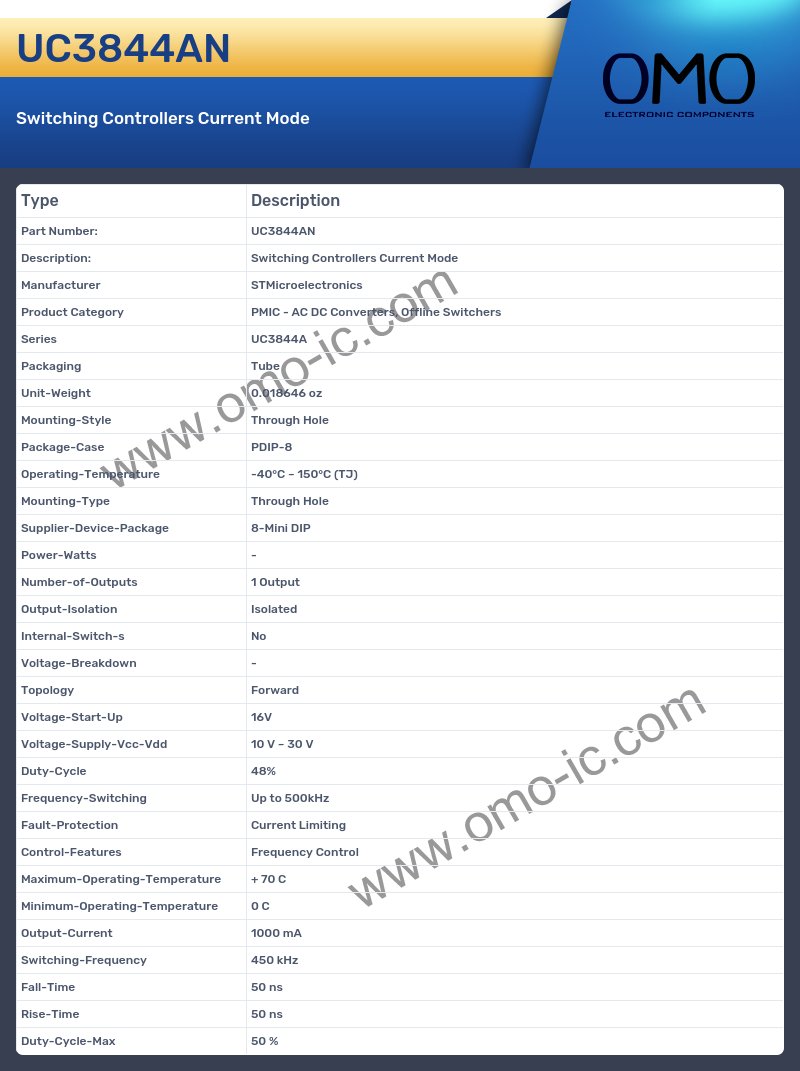

UC3844AN Specifications
