UCC24636DBVT

UCC24636DBVT Overview

Product belongs to the UCC24636 series. This product is categorized as MOSFET Gate Drivers Type: Synchronous Rectifier Controller Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Versatile Secondary-Side Controller, Synchronous Rectifier applications for maximum usability Voltage Supply Range: 3.6 V ~ 28 V Supplier device package: SOT-23-6 Configuration High and Low Side Driver - voltage input This product has a - of 200μA. Number-of-Outputs: 1 Output Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 5 V to 24 V 900 uA is 92 nA. Output current: 50 mA This product has a 20 ns of 16 ns. This product has a 27 ns of 16 ns. Maximum supply voltage of 28 V Minimum supply voltage is 3.6 V Number-of-Drivers: 1 Driver Maximum off time: 4.35 us This product has a Maximum-Turn-Off-Delay-Time of 95 ns. 160 ns maximum turn-on delay time

UCC24636DBVT Image

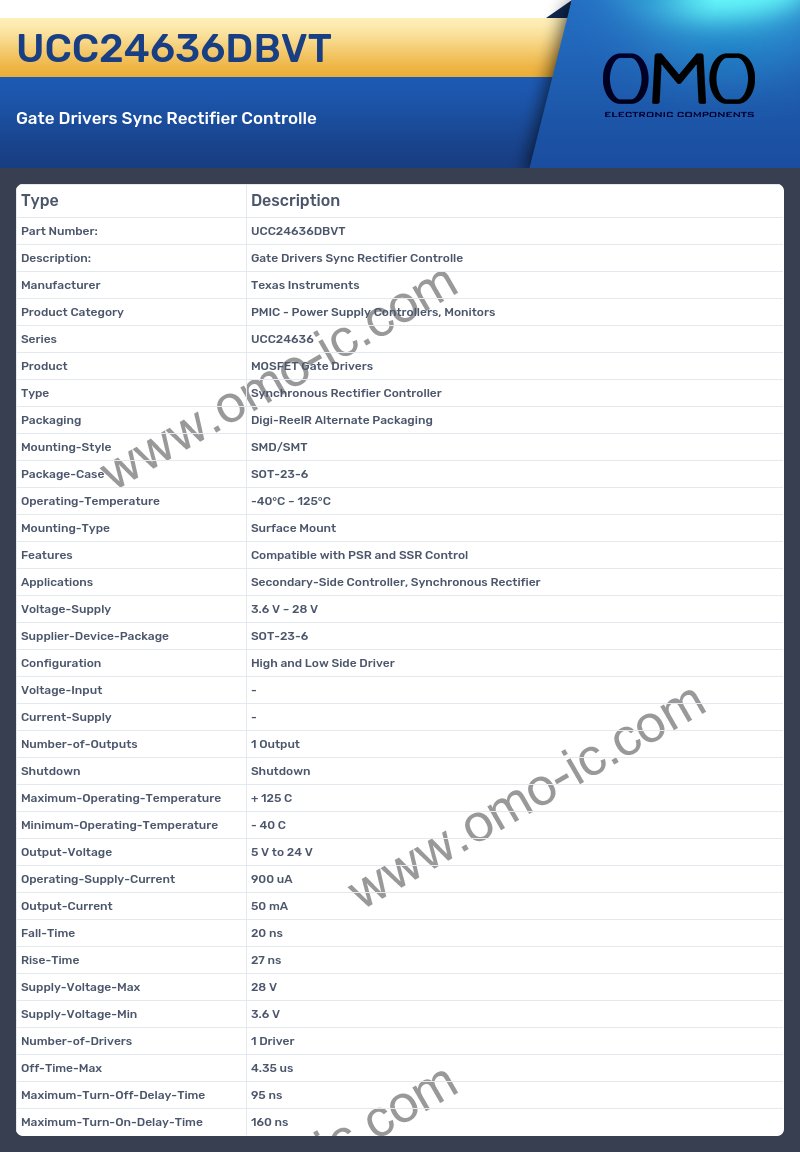

UCC24636DBVT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Supply Controllers, Monitors
• Series UCC24636
• Product MOSFET Gate Drivers
• Type Synchronous Rectifier Controller
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Features Compatible with PSR and SSR Control
• Applications Secondary-Side Controller, Synchronous Rectifier
• Voltage-Supply 3.6 V ~ 28 V
• Supplier-Device-Package SOT-23-6
• Configuration High and Low Side Driver
• Voltage-Input -
• Current-Supply -
• Number-of-Outputs 1 Output
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 5 V to 24 V
• Operating-Supply-Current 900 uA
• Output-Current 50 mA
• Fall-Time 20 ns
• Rise-Time 27 ns
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 3.6 V
• Number-of-Drivers 1 Driver
• Off-Time-Max 4.35 us
• Maximum-Turn-Off-Delay-Time 95 ns
• Maximum-Turn-On-Delay-Time 160 ns
