| Mfr. #: | UCC25701DTR |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Switching Controllers Adv Voltage Mode |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | UCC25701DTR Datasheet |
Product belongs to the UCC25701 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 150°C (TJ) * mounting type Supplier device package: 14-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 9 V ~ 15 V This product features 'Frequency-Switching' at 700kHz for optimal performance. The Control-Features include Soft Start, Sync function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 700 kHz This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns. Maximum duty cycle of 99 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

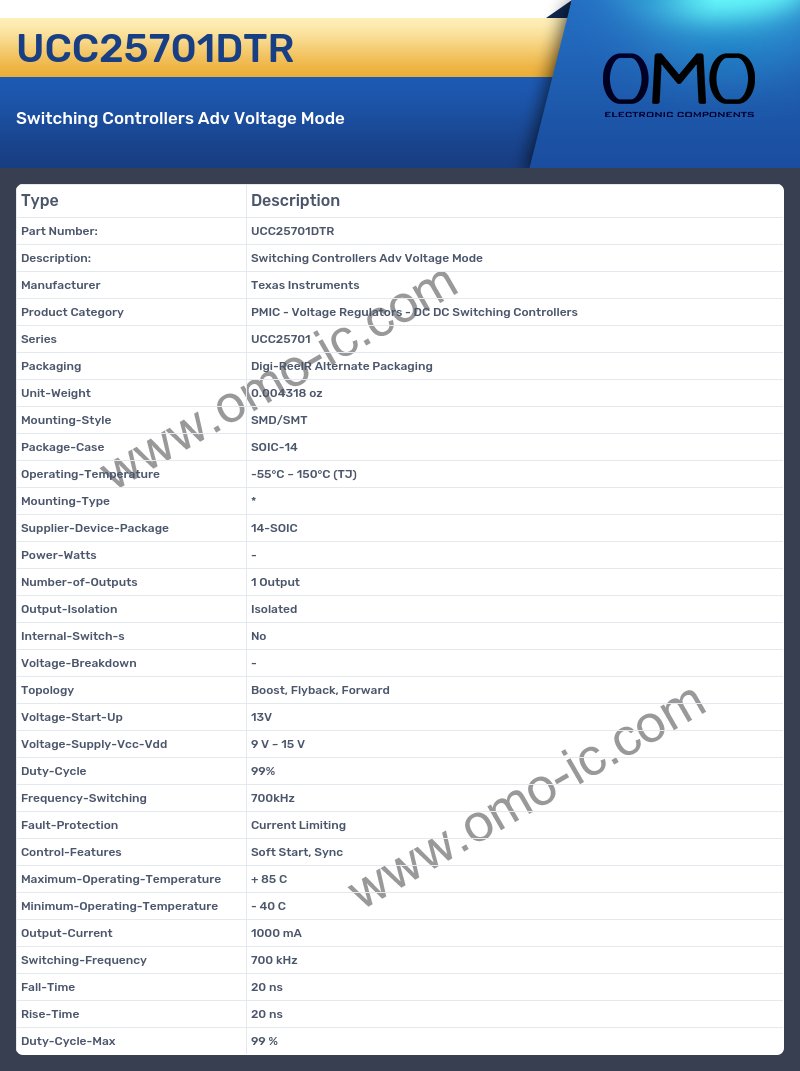

UCC25701DTR Specifications
