| Mfr. #: | UCC2802QDREP |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Switching Controllers Mil Enh Low-pwr BIC MOS Current-Mode PWM |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | UCC2802QDREP Datasheet |
Product belongs to the UCC2802-EP series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002667 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C (TA) * mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: - This product has No. Topology: Boost, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 12 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns. This product is also known as V62/03624-03XE and can be referred to by either part number. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

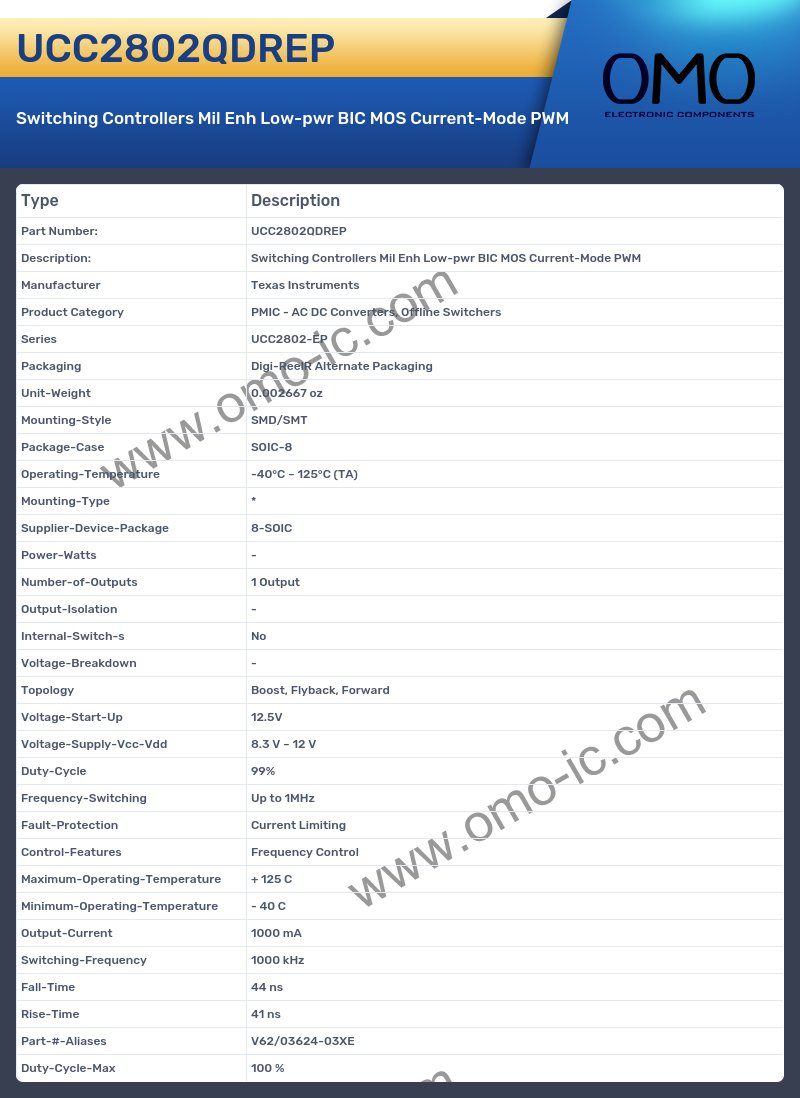

UCC2802QDREP Specifications
