UCC28610DR

UCC28610DR Overview

Product belongs to the UCC28610 series. Type: Current Mode PWM Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications SOIC-8 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 8 V ~ 25 V This product features 'Frequency-Switching' at 30kHz ~ 133kHz for optimal performance. The Control-Features include - function. The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Output voltage: - 3 mA is 92 nA. Output current: 5 A Switching frequency is 30 kHz to 133 kHz The UCC28610EVM-474. Maximum duty cycle of - This product requires a minimum 9 V of 2.95 V. This product has a maximum 20 V of 20 V.

UCC28610DR Image

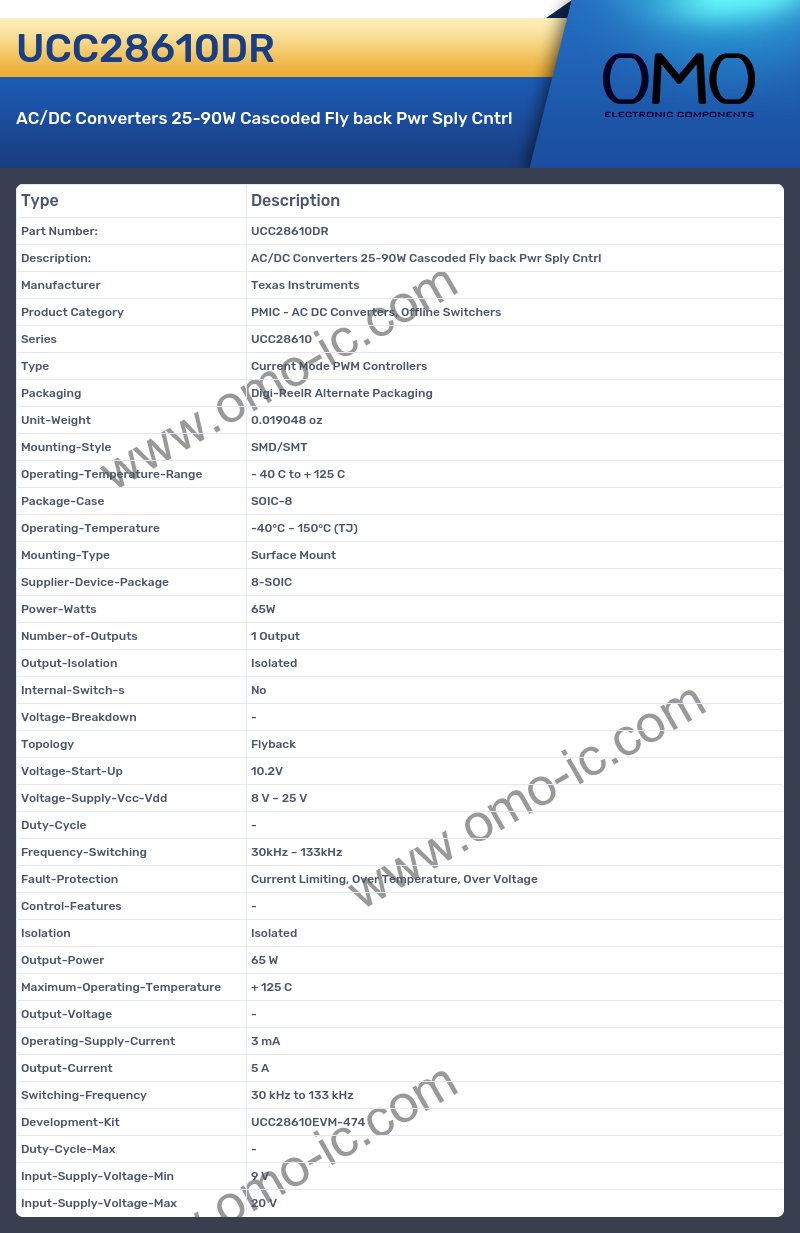

UCC28610DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC28610
• Type Current Mode PWM Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SOIC
• Power-Watts 65W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 10.2V
• Voltage-Supply-Vcc-Vdd 8 V ~ 25 V
• Duty-Cycle -
• Frequency-Switching 30kHz ~ 133kHz
• Fault-Protection Current Limiting, Over Temperature, Over Voltage
• Control-Features -
• Isolation Isolated
• Output-Power 65 W
• Maximum-Operating-Temperature + 125 C
• Output-Voltage -
• Operating-Supply-Current 3 mA
• Output-Current 5 A
• Switching-Frequency 30 kHz to 133 kHz
• Development-Kit UCC28610EVM-474
• Duty-Cycle-Max -
• Input-Supply-Voltage-Min 9 V
• Input-Supply-Voltage-Max 20 V
