UCC28722DBVT

UCC28722DBVT Overview

Product belongs to the UCC28722 series. This product is categorized as Flyback Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Supplier device package: SOT-23-6 Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 9 V ~ 35 V This product features 'Frequency-Switching' at 650Hz ~ 80kHz for optimal performance. The Control-Features include - function. Power-off control: No The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 35 V supply voltage for reliable performance. This product is an Flyback power supply controller provides isolated-output constant-voltage and constant-current output regulation without the use of an optical coupler. 2 mA is 92 nA. Input Voltage Range: 35 V Switching frequency is 0.65 kHz to 80 kHz Maximum duty cycle of 99 %

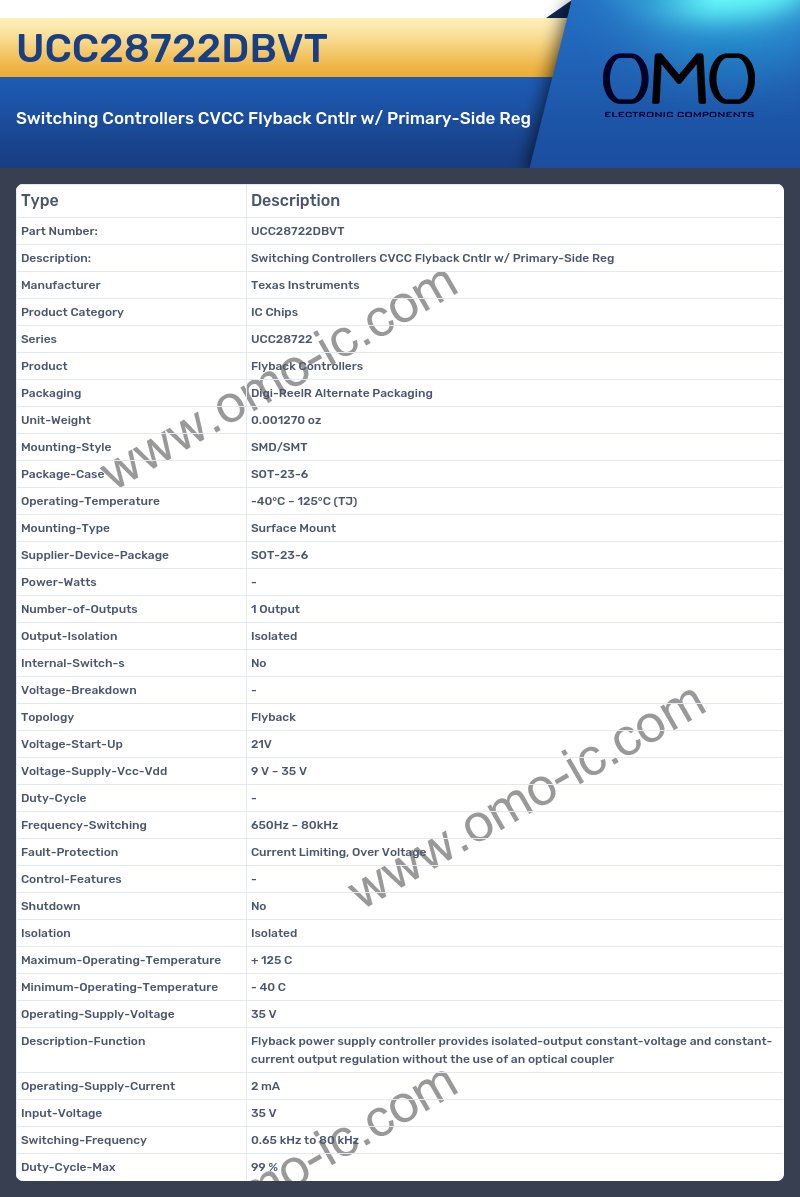

UCC28722DBVT Image

UCC28722DBVT Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series UCC28722
• Product Flyback Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-23-6
• Power-Watts -
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 21V
• Voltage-Supply-Vcc-Vdd 9 V ~ 35 V
• Duty-Cycle -
• Frequency-Switching 650Hz ~ 80kHz
• Fault-Protection Current Limiting, Over Voltage
• Control-Features -
• Shutdown No
• Isolation Isolated
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 35 V
• Description-Function Flyback power supply controller provides isolated-output constant-voltage and constant-current output regulation without the use of an optical coupler
• Operating-Supply-Current 2 mA
• Input-Voltage 35 V
• Switching-Frequency 0.65 kHz to 80 kHz
• Duty-Cycle-Max 99 %
