UCC28C40DR

UCC28C40DR Overview

Product belongs to the UCC28C40 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 105°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 6.6 V ~ 18 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Output voltage: 18 V Output current: 200 mA Switching frequency is 1000 kHz This product has a 20 ns of 16 ns. This product has a 25 ns of 16 ns.

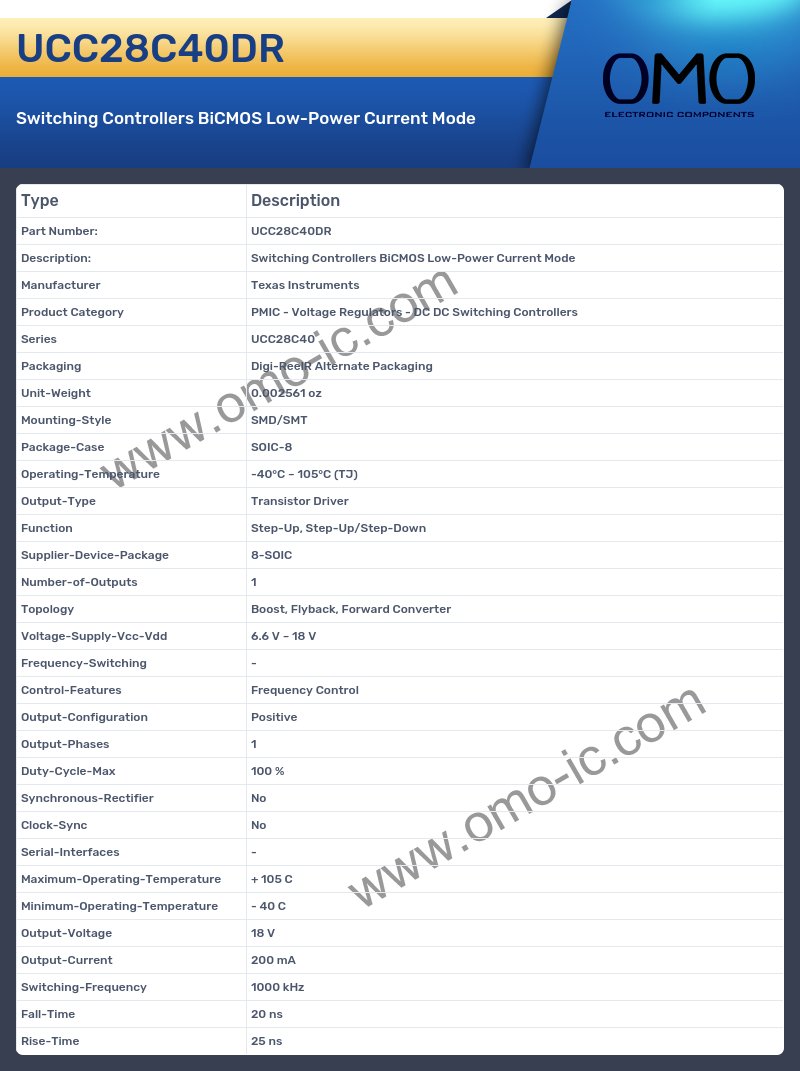

UCC28C40DR Image

UCC28C40DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC28C40
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 105°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 6.6 V ~ 18 V
• Frequency-Switching -
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 18 V
• Output-Current 200 mA
• Switching-Frequency 1000 kHz
• Fall-Time 20 ns
• Rise-Time 25 ns
