UCC3805DTR

UCC3805DTR Overview

Product belongs to the UCC3805 series. This product is categorized as Switching Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter feedback Supply Voltage: 3.6 V ~ 12 V This product features 'Frequency-Switching' at 31kHz for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 50 % The value of No is included as a product attribute. No enabled Serial Interfaces: - The product's Non-Isolated is non-isolated. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 12 V supply voltage for reliable performance. Output voltage: 4 V 500 uA is 92 nA. Input Voltage Range: - 300 mV to +12.3 V Output current: 1 A Switching frequency is 1 MHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns.

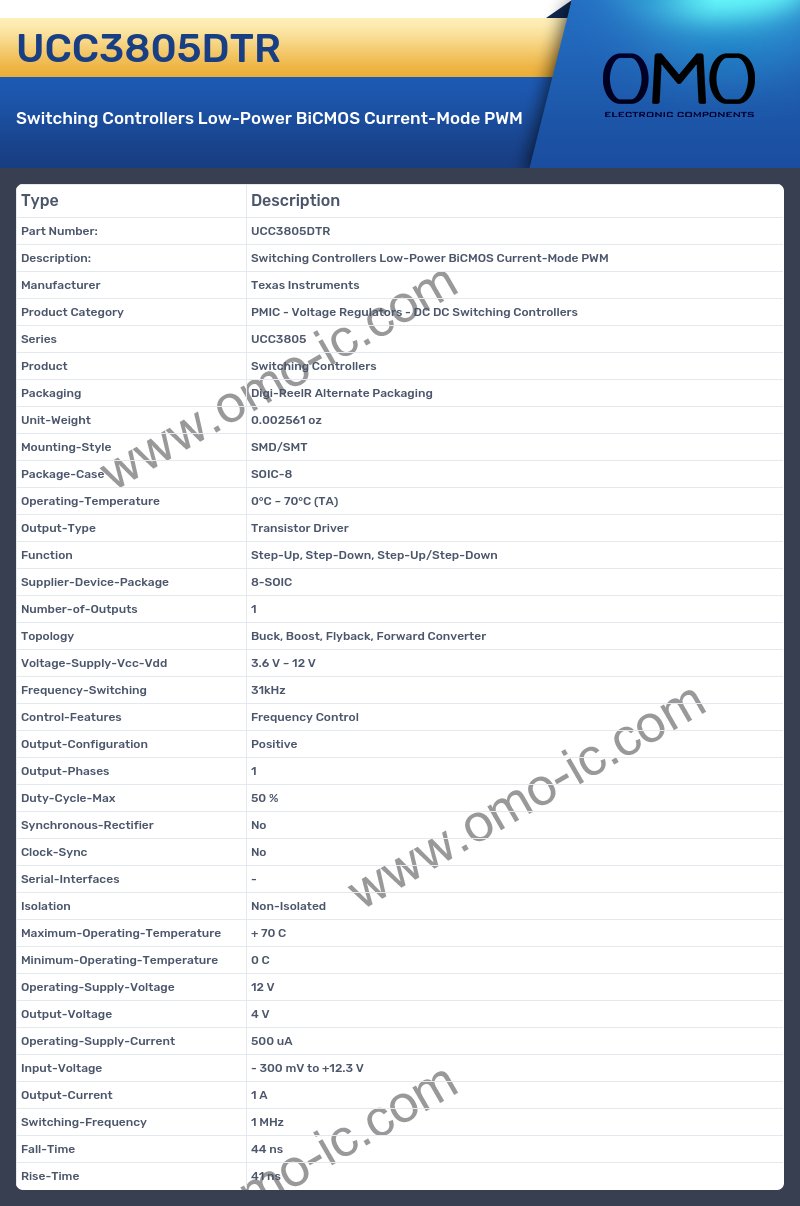

UCC3805DTR Image

UCC3805DTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC3805
• Product Switching Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C (TA)
• Output-Type Transistor Driver
• Function Step-Up, Step-Down, Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Buck, Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 3.6 V ~ 12 V
• Frequency-Switching 31kHz
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 50 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Isolation Non-Isolated
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 12 V
• Output-Voltage 4 V
• Operating-Supply-Current 500 uA
• Input-Voltage - 300 mV to +12.3 V
• Output-Current 1 A
• Switching-Frequency 1 MHz
• Fall-Time 44 ns
• Rise-Time 41 ns
