| Mfr. #: | UCC38C44D |
|---|---|
| Manufacturer: | Texas Instruments |
| Description: | Switching Controllers BiCMOS Low-Power Current Mode |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | UCC38C44D Datasheet |
Product belongs to the UCC38C44 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has No. Topology: Forward feedback Supply Voltage: 9 V ~ 18 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 18 V Output current: 200 mA Switching frequency is 1000 kHz This product has a 20 ns of 16 ns. This product has a 25 ns of 16 ns. Maximum duty cycle of 50 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

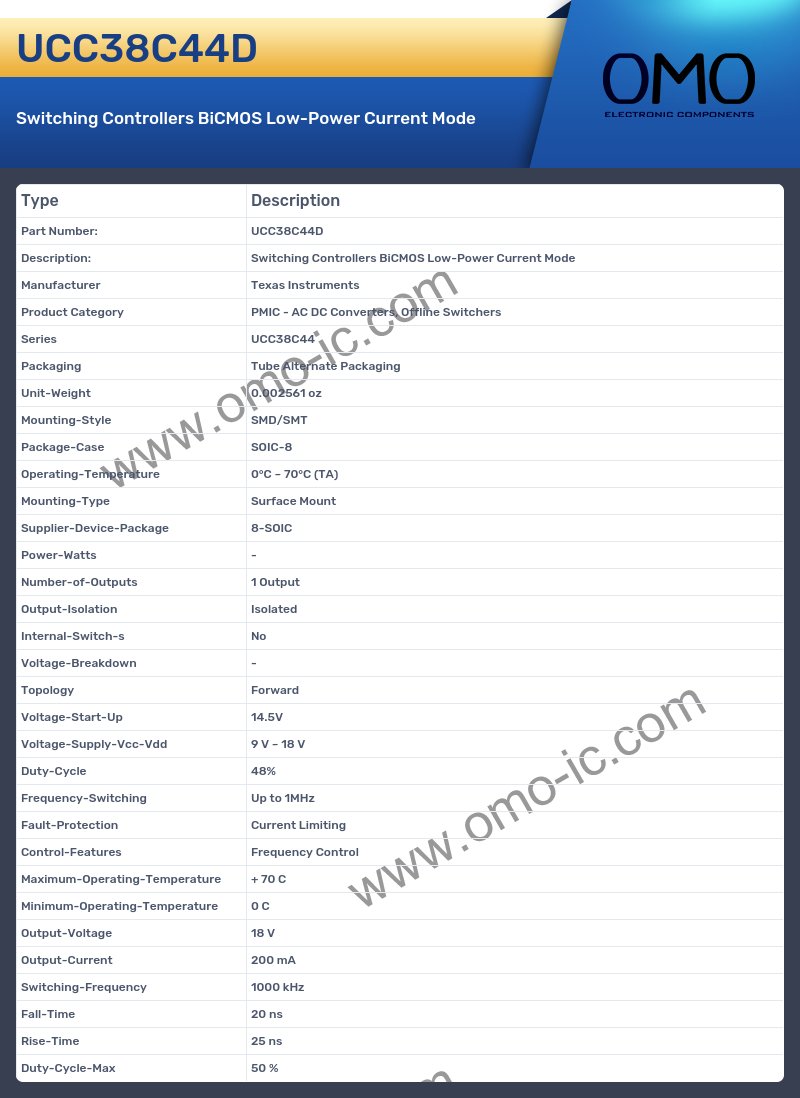

UCC38C44D Specifications
A: What is the Series of the product?
Q: The Series of the product is UCC38C44.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube Alternate Packaging.
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 0.002561 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed SOIC-8
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed 0°C ~ 70°C (TA)
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 8-SOIC.
A: What is the Number-of-Outputs of the product?
Q: The Number-of-Outputs of the product is 1 Output.
A: Is the cutoff frequency of the product Output-Isolation?
Q: Yes, the product's Output-Isolation is indeed Isolated
A: What is the Internal-Switch-s of the product?
Q: The Internal-Switch-s of the product is No.
A: Is the cutoff frequency of the product Topology?
Q: Yes, the product's Topology is indeed Forward
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 9 V ~ 18 V
A: Is the cutoff frequency of the product Frequency-Switching?
Q: Yes, the product's Frequency-Switching is indeed Up to 1MHz
A: At what frequency does the Control-Features?
Q: The product Control-Features is Frequency Control.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 70 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is 0 C.
A: Is the cutoff frequency of the product Output-Voltage?
Q: Yes, the product's Output-Voltage is indeed 18 V
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 200 mA
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 1000 kHz.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 20 ns.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 25 ns.
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 50 %
