UCD7232RTJR

UCD7232RTJR Overview

Product belongs to the UCD7232 series. This product is categorized as MOSFET Gate Drivers Type: Synchronous Buck MOSFET Driver Reel is the packaging method for this product Weight of 0.001344 oz SMD/SMT Mounting-Style Configuration Dual Number-of-Outputs: 1 Output Power-off control: 183 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 500 mV 8 mA to 10 mA is 92 nA. Output current: 6 A This product has a 20 ns of 16 ns. This product has a 30 ns of 16 ns. Maximum supply voltage of 15 V Minimum supply voltage is 4.7 V WQFN-20 Number-of-Drivers: 1 Driver

UCD7232RTJR Image

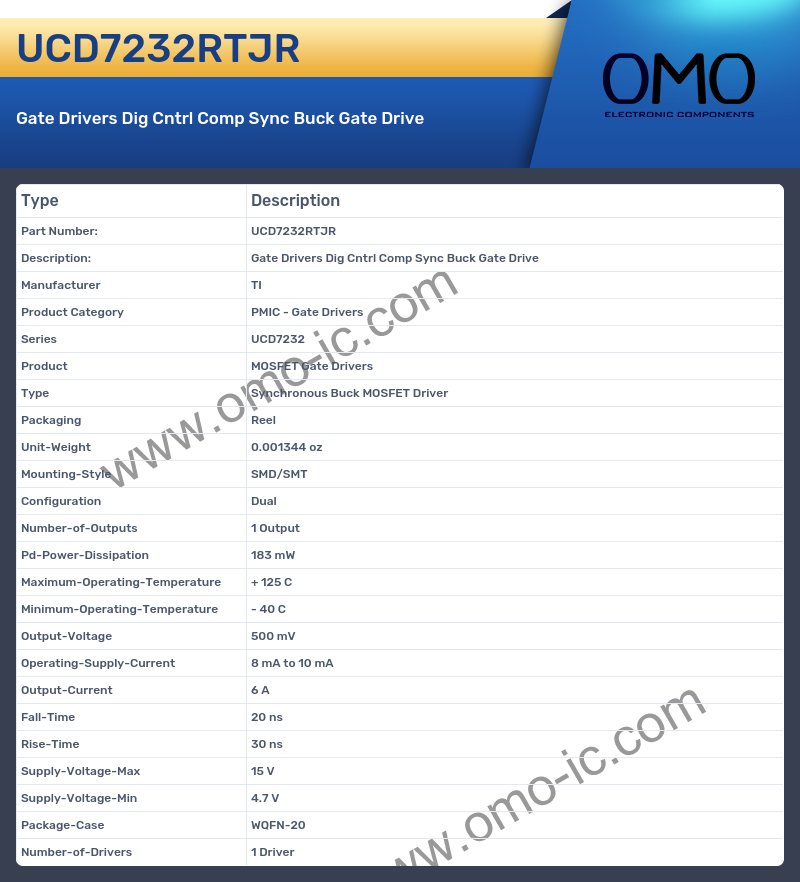

UCD7232RTJR Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UCD7232
• Product MOSFET Gate Drivers
• Type Synchronous Buck MOSFET Driver
• Packaging Reel
• Unit-Weight 0.001344 oz
• Mounting-Style SMD/SMT
• Configuration Dual
• Number-of-Outputs 1 Output
• Pd-Power-Dissipation 183 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 500 mV
• Operating-Supply-Current 8 mA to 10 mA
• Output-Current 6 A
• Fall-Time 20 ns
• Rise-Time 30 ns
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4.7 V
• Package-Case WQFN-20
• Number-of-Drivers 1 Driver
