ULN2002AN

ULN2002AN Overview

Product belongs to the ULN2002A series. Tube Alternate Packaging is the packaging method for this product Weight of 0.033570 oz Through Hole Mounting-Style 16-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 16-PDIP Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 70 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A

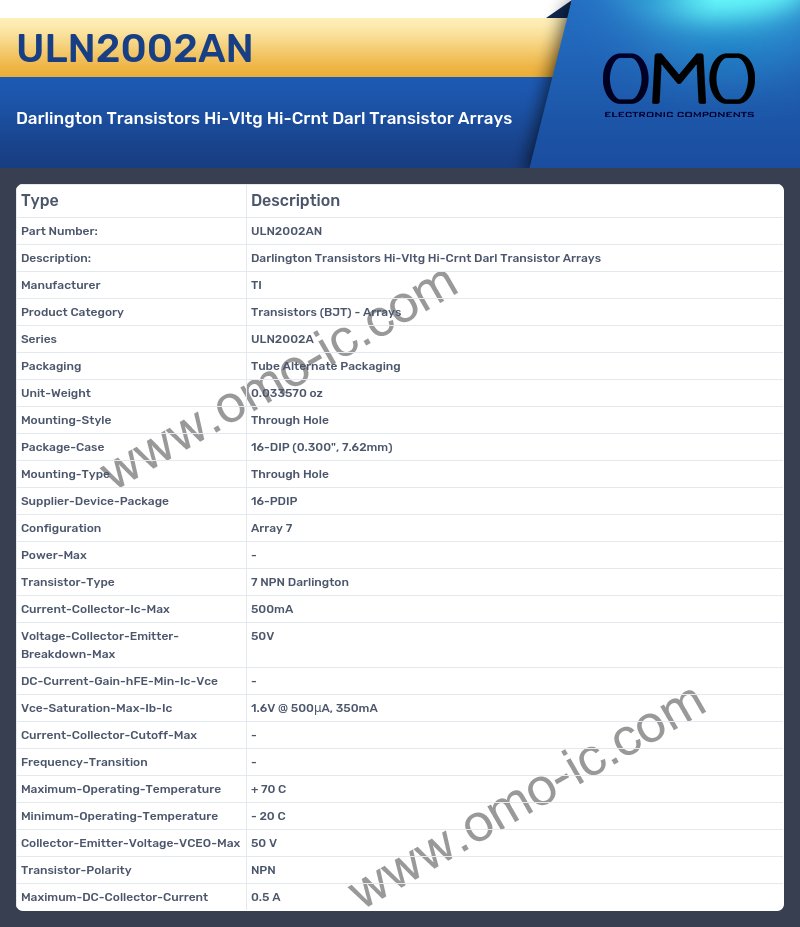

ULN2002AN Image

ULN2002AN Specifications

• Manufacturer TI
• Product Category Transistors (BJT) - Arrays
• Series ULN2002A
• Packaging Tube Alternate Packaging
• Unit-Weight 0.033570 oz
• Mounting-Style Through Hole
• Package-Case 16-DIP (0.300", 7.62mm)
• Mounting-Type Through Hole
• Supplier-Device-Package 16-PDIP
• Configuration Array 7
• Power-Max -
• Transistor-Type 7 NPN Darlington
• Current-Collector-Ic-Max 500mA
• Voltage-Collector-Emitter-Breakdown-Max 50V
• DC-Current-Gain-hFE-Min-Ic-Vce -
• Vce-Saturation-Max-Ib-Ic 1.6V @ 500μA, 350mA
• Current-Collector-Cutoff-Max -
• Frequency-Transition -
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature - 20 C
• Collector-Emitter-Voltage-VCEO-Max 50 V
• Transistor-Polarity NPN
• Maximum-DC-Collector-Current 0.5 A
