| Mfr. #: | VIPER16HDTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | IC OFFLINE CONV PWM 16SOIC |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | VIPER16HDTR Datasheet |
Product belongs to the VIPer plus series. Type: Current Mode PWM Controller Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-16 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Number-of-Outputs: 1 Output Output-Isolation: Either This product has Yes. Topology: Buck, Buck-Boost, Flyback feedback Supply Voltage: 11.5 V ~ 23.5 V This product features 'Frequency-Switching' at 115kHz for optimal performance. The Control-Features include - function. The product's Isolated/Non-Isolated is non-isolated. Maximum operating temperature of + 150 C Output voltage: 800 V 1.5 mA is 92 nA. Output current: 420 mA Switching frequency is 115 kHz Maximum duty cycle of 80 % This product requires a minimum 11.5 V of 2.95 V. This product has a maximum 11.5 V of 20 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

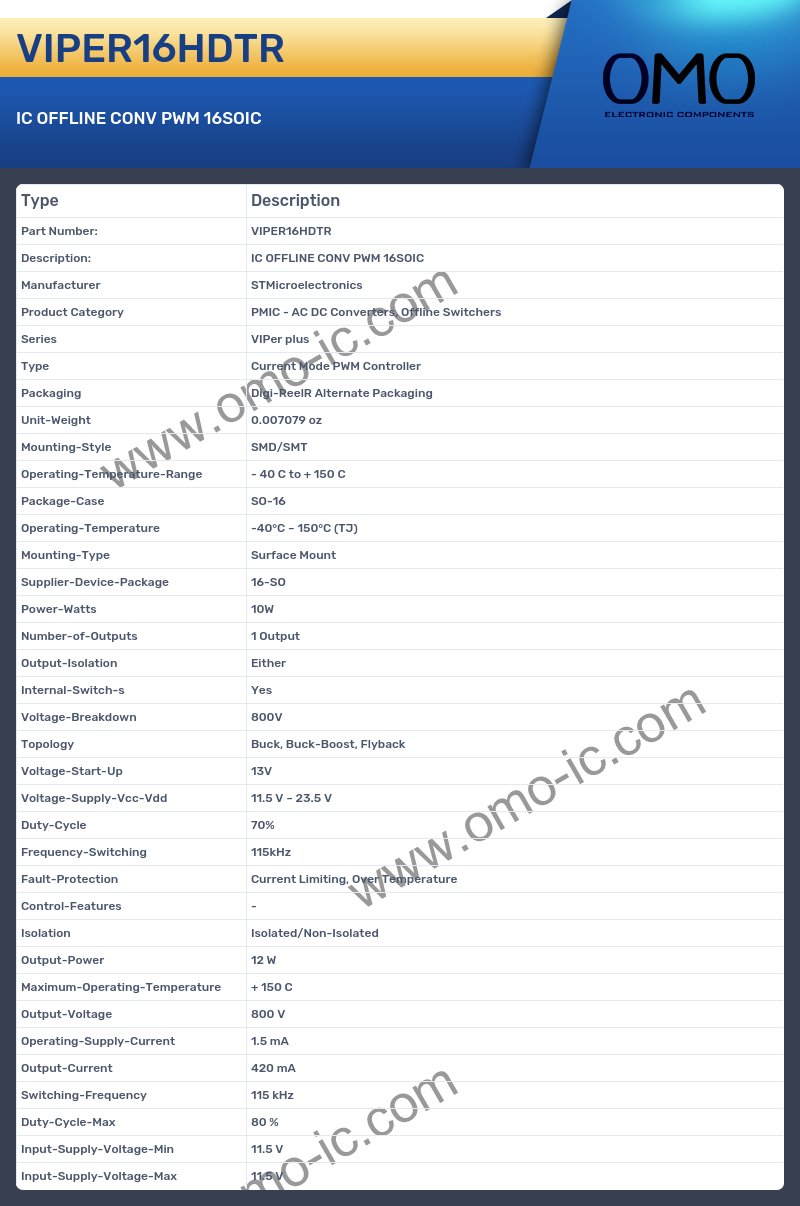

VIPER16HDTR Specifications
