VN340SPTR-33-E

VN340SPTR-33-E Overview

Product belongs to the VN340SP series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-12 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 10-PowerSO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 200 mOhm (Max). Voltage-Load range is 10 V ~ 36 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is General Purpose. Output current: 1 A Maximum supply voltage of 36 V Minimum supply voltage is 10 V

VN340SPTR-33-E Image

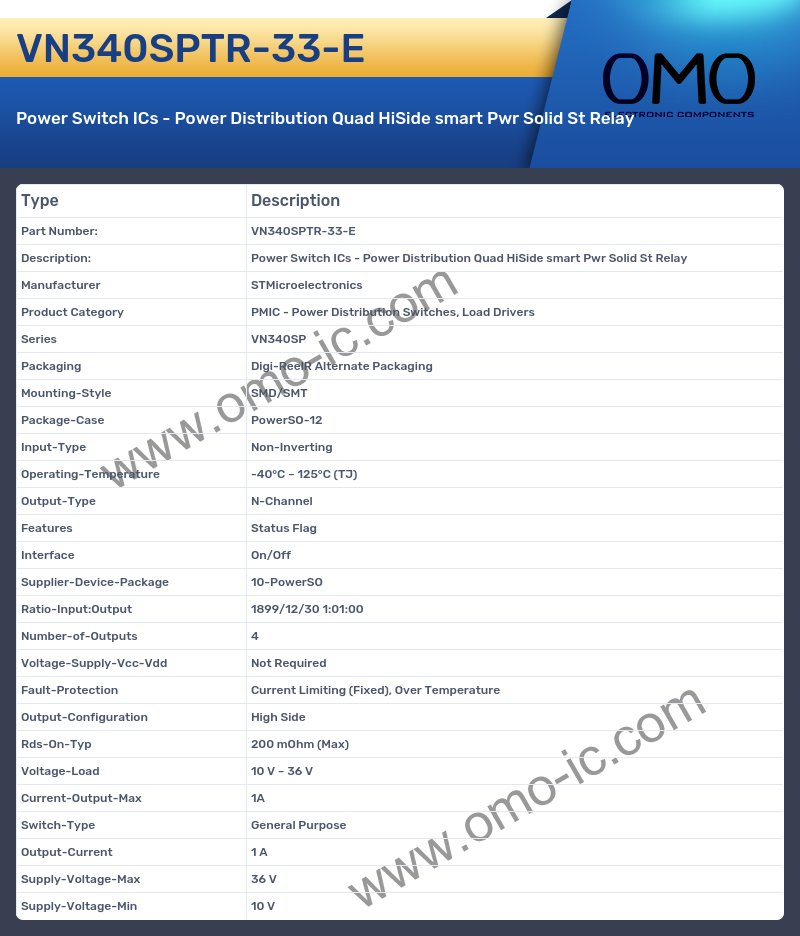

VN340SPTR-33-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VN340SP
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-12
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 10-PowerSO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 200 mOhm (Max)
• Voltage-Load 10 V ~ 36 V
• Current-Output-Max 1A
• Switch-Type General Purpose
• Output-Current 1 A
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 10 V
