VN820

VN820 Overview

Product belongs to the - series. Tube is the packaging method for this product Pentawatt-5 (Vertical, Bent and Staggered Leads) The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 5-PENTAWATT The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 40 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 9A of 50mA for efficient power management. The Switch-Type is General Purpose.

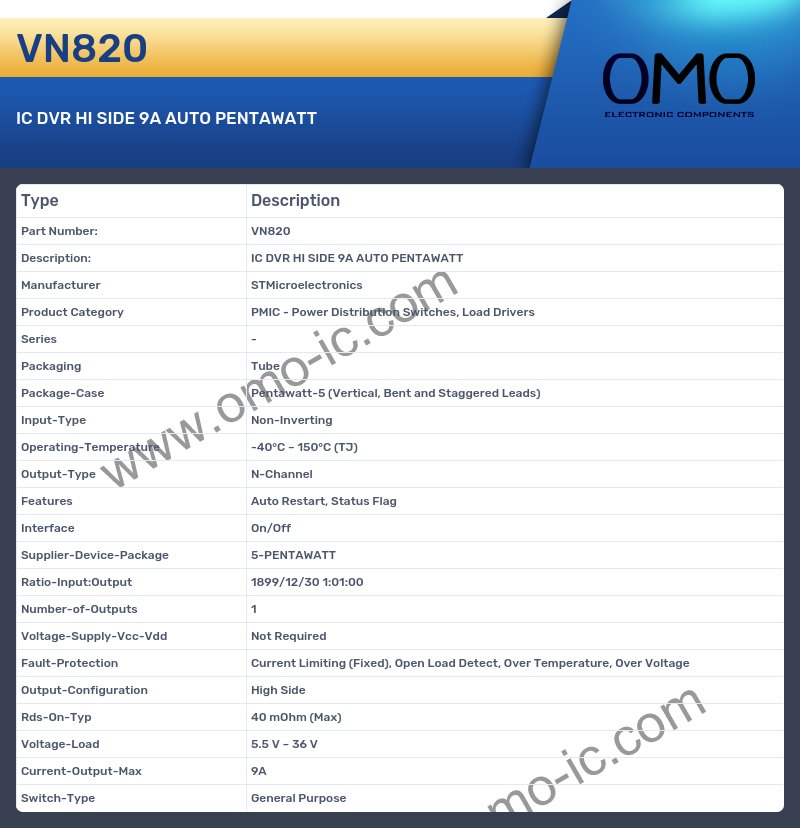

VN820 Image

VN820 Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series -
• Packaging Tube
• Package-Case Pentawatt-5 (Vertical, Bent and Staggered Leads)
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package 5-PENTAWATT
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 40 mOhm (Max)
• Voltage-Load 5.5 V ~ 36 V
• Current-Output-Max 9A
• Switch-Type General Purpose
