VNN7NV04PTR-E Overview

Product belongs to the OMNIFET II, VIPower series. This product is categorized as MOSFET Gate Drivers Type: Power MOSFET Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008826 oz SMD/SMT Mounting-Style SOT-223-3 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: SOT-223 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Single Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 65 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 6A of 50mA for efficient power management. The Switch-Type is General Purpose. 150 uA is 92 nA. Output current: - 10.5 A This product has a 1000 ns of 16 ns. This product has a 1500 ns of 16 ns.

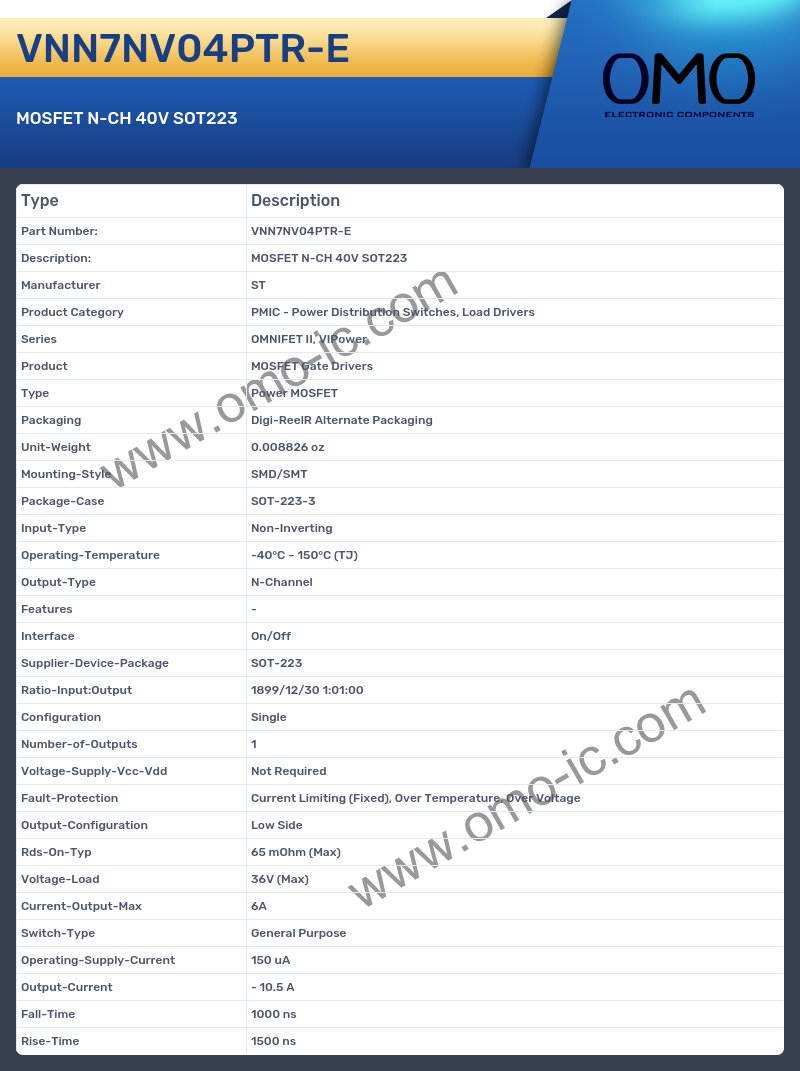

VNN7NV04PTR-E Image

VNN7NV04PTR-E Specifications

• Manufacturer ST
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Product MOSFET Gate Drivers
• Type Power MOSFET
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008826 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223-3
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package SOT-223
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Single
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 65 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 6A
• Switch-Type General Purpose
• Operating-Supply-Current 150 uA
• Output-Current - 10.5 A
• Fall-Time 1000 ns
• Rise-Time 1500 ns
