X0405MF 1AA2

X0405MF 1AA2 Overview

Product belongs to the X04 series. Bulk is the packaging method for this product Through Hole Mounting-Style TO-202 No Tab Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TO-202 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 800mV 50μA of Current-Gate-Trigger-Igt-Max Maximum 1.8V On-State Voltage Its 900mA Current-On-State-It-AV-Max 1.35A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 30A, 33A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 600 V Rated Repetitive Off-State Voltage VDRM; 5 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 50 uA; 1.35 A RMS Current On-State 33 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 8 V. Vf-Forward-Voltage: 1.8 V

X0405MF 1AA2 Image

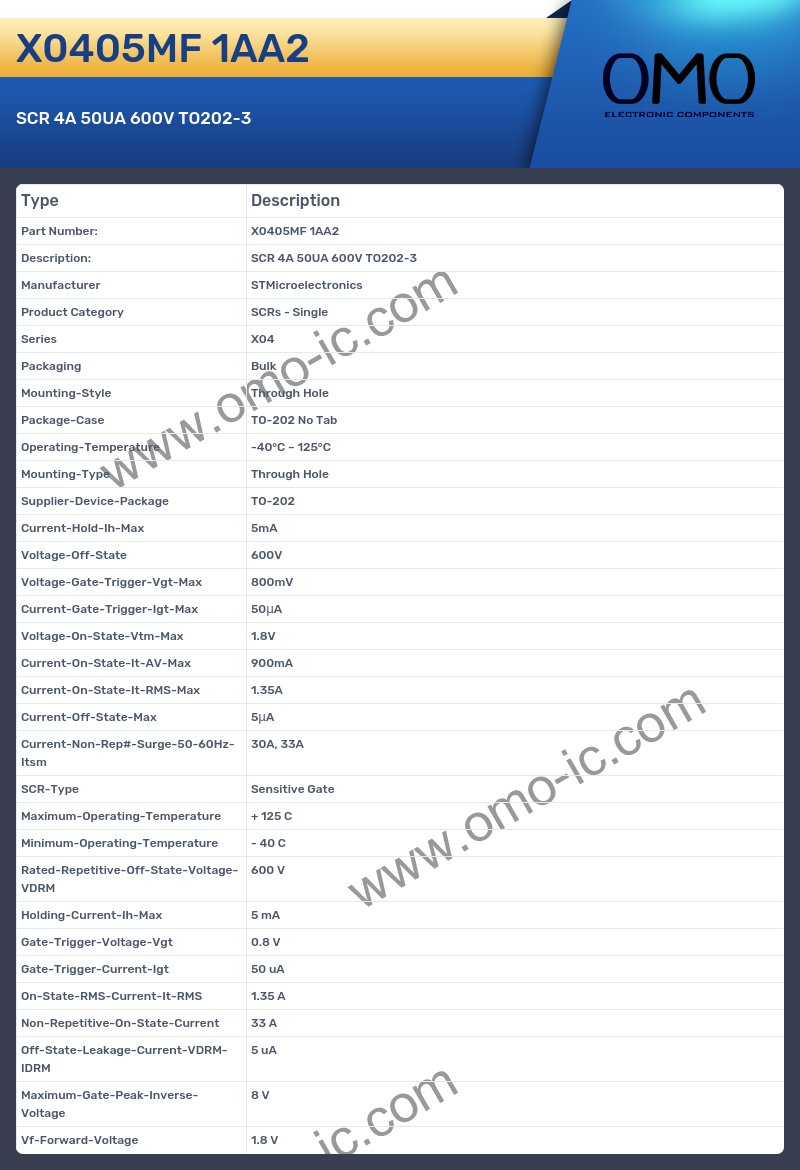

X0405MF 1AA2 Specifications

• Manufacturer STMicroelectronics
• Product Category SCRs - Single
• Series X04
• Packaging Bulk
• Mounting-Style Through Hole
• Package-Case TO-202 No Tab
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-202
• Current-Hold-Ih-Max 5mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 50μA
• Voltage-On-State-Vtm-Max 1.8V
• Current-On-State-It-AV-Max 900mA
• Current-On-State-It-RMS-Max 1.35A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 30A, 33A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 600 V
• Holding-Current-Ih-Max 5 mA
• Gate-Trigger-Voltage-Vgt 0.8 V
• Gate-Trigger-Current-Igt 50 uA
• On-State-RMS-Current-It-RMS 1.35 A
• Non-Repetitive-On-State-Current 33 A
• Off-State-Leakage-Current-VDRM-IDRM 5 uA
• Maximum-Gate-Peak-Inverse-Voltage 8 V
• Vf-Forward-Voltage 1.8 V
