Z0103NN5AA4

Z0103NN5AA4 Overview

Product belongs to the Z01 series. Digi-ReelR Alternate Packaging is the packaging method for this product TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Configuration Single 7mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.3V 3mA of Current-Gate-Trigger-Igt-Max 1A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 8A, 8.5A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type

Z0103NN5AA4 Image

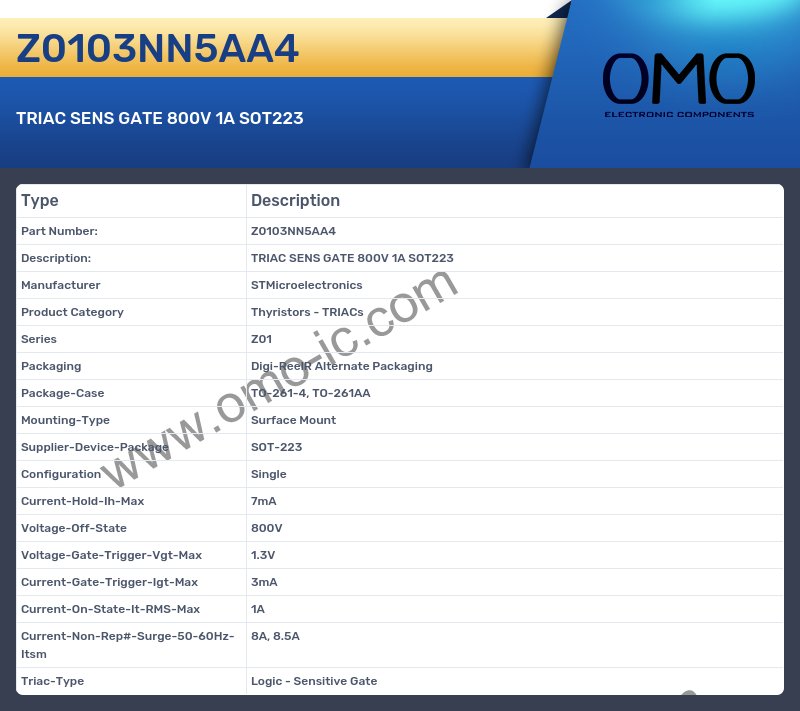

Z0103NN5AA4 Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - TRIACs
• Series Z01
• Packaging Digi-ReelR Alternate Packaging
• Package-Case TO-261-4, TO-261AA
• Mounting-Type Surface Mount
• Supplier-Device-Package SOT-223
• Configuration Single
• Current-Hold-Ih-Max 7mA
• Voltage-Off-State 800V
• Voltage-Gate-Trigger-Vgt-Max 1.3V
• Current-Gate-Trigger-Igt-Max 3mA
• Current-On-State-It-RMS-Max 1A
• Current-Non-Rep#-Surge-50-60Hz-Itsm 8A, 8.5A
• Triac-Type Logic - Sensitive Gate
