| Mfr. #: | Z0409NF 1AA2 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Description: | Triacs 4A TRIACS |
| Lifecycle: | New from this manufacturer. |
| Datasheet: | Z0409NF 1AA2 Datasheet |
Product belongs to the Z04 series. Bulk is the packaging method for this product Through Hole Mounting-Style TO-202 No Tab Through Hole mounting type Supplier device package: TO-202 Configuration Single 10mA of Current-Hold-Ih-Max The Voltage-Off-State is 800V. Voltage-Gate-Trigger-Vgt-Max 1.3V 10mA of Current-Gate-Trigger-Igt-Max 4A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 20A, 21A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 800 V Rated Repetitive Off-State Voltage VDRM; 10 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 10 mA; 21 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The 2 V On-State-Voltage
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

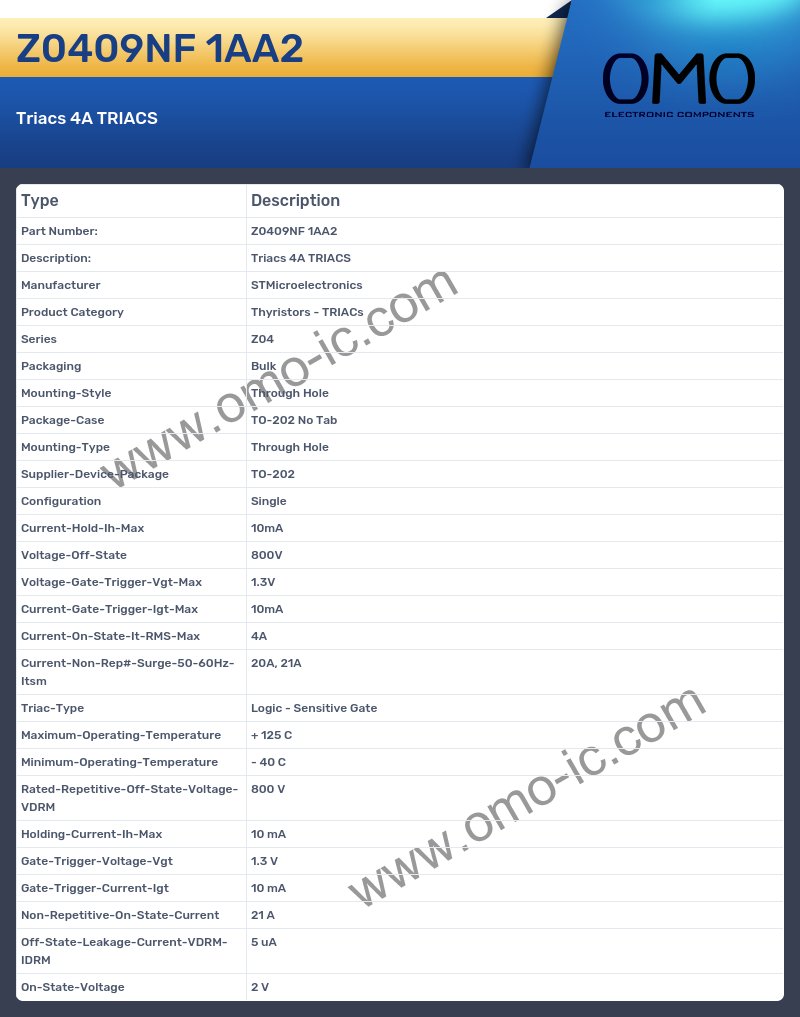

Z0409NF 1AA2 Specifications
